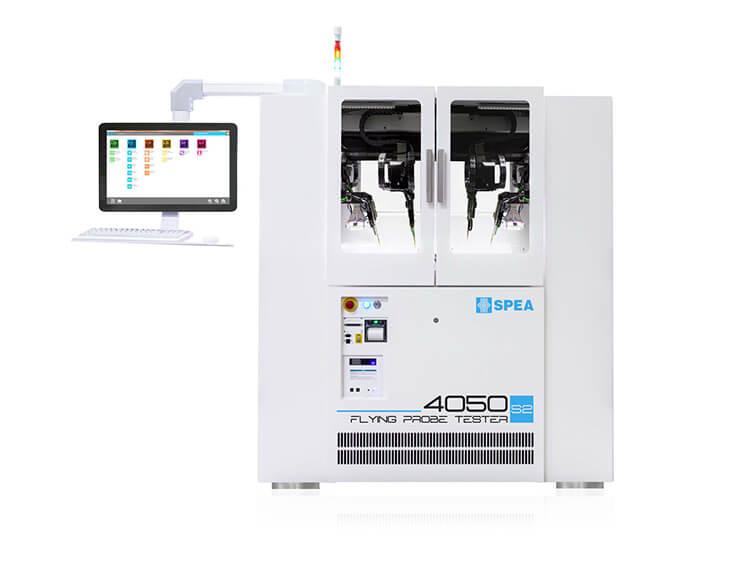

Flying Probe Testing Machine SPEA 4050

Probe Flying Heads 4 top
UUT probing Single Side
max PCB: In-Line: 1000 x 400mm
Dimensions: 1360 x 1220x1600mm
Product description: Flying Probe Testing Machine SPEA 4050, Automatic 4x Flying Probe Tester, Multi function, Probe Flying Heads 4 top, UUT probing Single Side, max PCB: In-Line: 1000 x 400mm, Dimensions: 1360 x 1220x1
INQUIRY

Flying Probe Testing Machine SPEA 4050

Product Specification

Key Features
High throughput
Best measurement accuracy
Accurate Micro-SMD probing
No cost of fixturing
Intuitive programming
Zero errors at functional test
Field returns are practically eliminated
Top-performance linear motors on XYZ axis
Highest speed of movement
Maintenance-free: no tear and wear can affect accuracy
Mechanical stability over time
Multi-Mode Probing
4050 S2 can combine the 4 high-speed top flying heads with additional tools to contact the bottom side of the board, increasing throughput and test capabilities.
Each flying probe can be used for in-circuit test, power-on test, sink/source analog, digital D/S, flashing via on-board programming, boundary scan, prescaler.
While using the 4 top probes to perform flying probe test from the top side, a bottom lifted platform can be used for bed-of-nails fixtures, multiple high-current power supplies, digital I/O,high-speed signals, fixed probes, planarity supports.

Leonardo OS2
Easy. Fast. Self-programming.
Automatic test program generation in minutes
Automatic test program generation with or without CAD file
– 50% test program generation time with new S2 System Control
Faster & fully automatic Debug & Tuning
Automatic board repair software
Automatic Pick & Place X-Y file import
Built-in Self-Test (BIST) compliant
User-friendly intuitive graphical interface
Control software to monitor, analyze & optimize the production process

Test Capabilities
IN-CIRCUIT TEST
100% SHORT CIRCUIT TEST
NODAL IMPEDANCE TEST
OPEN PIN SCAN
POWER ON TEST
FUNCTIONAL TEST
OPTICAL TEST
LED LIGHT TEST
3D LASER TEST
FLASHING
BOUNDARY SCAN
THERMAL TEST
WAVEFORM CAPTURE
BUILT-IN-SELF-TEST

SPEA 4050 S2	Specification
Application	Low to Medium Production
Throughput	High throughput
Chassis	Structural steel
UUT probing	Single Side
Multi-Probe Flying Heads	4 top
Max. Board Size (L x W)	Manual：500 x 400mm (19.7 x 15.7’’) In-Line: 1000 x 400mm (39.4 x 15.7’’)*
Footprint (L x W)	1360 x 1220x1600mm
