Flying Probe Testing Machine SPEA 4060
Product Specification

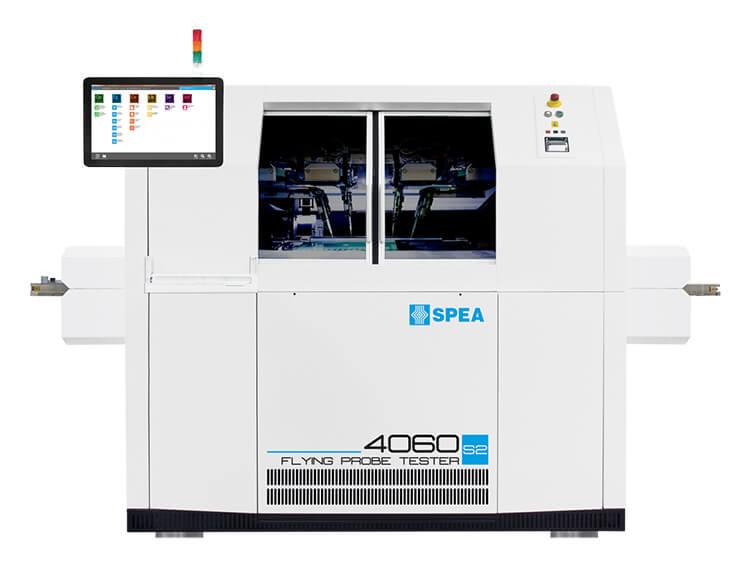

Flying Probe Testing Machine SPEA 4060
Key features
Dual side probing: full accessibility & parallel test
Large boards testing: 1000 x 610mm (39.4 x 24’’)
20 kg max board weight
Full test coverage
Conveyor / Automatic / Manual board loading
Micro-SMD & flexible circuit probing
Highest measurement performance & accuracy (0.1pF)
Signal integrity
No measurement degradation or interference
Immediate signal acquisition (within hundreds of microseconds)
Full accessibility & parallel test
DUAL-SIDE FLYING PROBING: Four top-side and two bottom-side moving heads make 4060 S2 able to perform flying probe test on both sides of the board simultaneously, increasing throughput and test capabilities.
BOTTOM MULTI-PROBE FLYING HEADS: In addition to electrical probes for electrical tests, the two bottom multi-probe flying heads can move high-speed power probes, support rods, hi-res cameras, multi-probes, laser & LED probes and electro scan probes, covering the most comprehensive test needs.
MULTI-MODE PROBING: While using the 4 top-side probes to perform flying probe test, a bottom moving platform can be used for bed-of-nails fixtures, multiple high-current power supplies, digital I/O, high-speed signals. The dynamic planarity supports allow you to reliably test large and thin boards, avoiding PCB vibrations due to probe strokes.
Leonardo OS2 Easy. Fast. Self-programming.
Automatic test program generation in minutes
Automatic test program generation with or without CAD file
– 50% test program generation time with new S2 System Control
Faster & fully automatic Debug & Tuning
Automatic board repair software
Automatic Pick & Place X-Y file import
Built-in Self-Test (BIST) compliant
User-friendly intuitive graphical interface
Control software to monitor, analyze & optimize the production process
Test Capabilities
IN-CIRCUIT TEST
100% SHORT CIRCUIT TEST
NODAL IMPEDANCE TEST
OPEN PIN SCAN
POWER ON TEST
FUNCTIONAL TEST
OPTICAL TEST
LED LIGHT TEST
3D LASER TEST
FLASHING
BOUNDARY SCAN
THERMAL TEST
WAVEFORM CAPTURE
BUILT-IN-SELF-TEST
|
SPEA 4060 S2
|
Specifications
|
|
Application
|
Low to Medium Production Repair
|
|
Throughput
|
Very high throughput
|
|
Chassis
|
Structural steel
|
|
UUT probing
|
Dual + Single Side combined
|
|
Multi-Probe Flying Heads
|
6 (4 top + 2 bottom)
|
|
Max. Board Size (L x W)
|
Manual: 686 x 610mm (27 x 24’’)
In-Line: 1000 x 610mm (39.4 x 24’’)*
|
|
Footprint (L x W)
|
1750 x 1272 x 1724 mm
|
