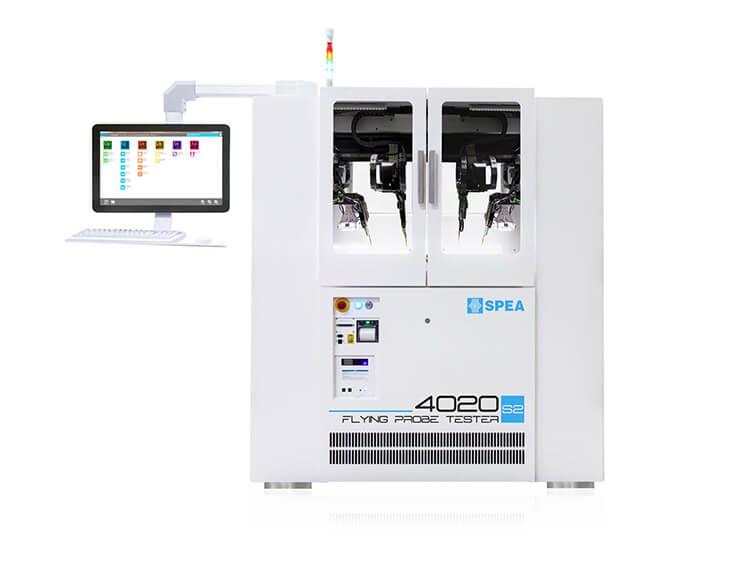

Flying Probe Testing Machine SPEA 4020 S2

Multi-Probe Flying Heads: 4 top
Max PCB: In-Line: 1000 x 400mm
UUT probing Single Side
Dimension: 1360 x 1220x1600mm
Product description: Flying Probe Testing Machine SPEA 4020 S2, Automatic 4x Flying Probe Tester, NPI and Engineering, Multi-Probe Flying Heads: 4 top, Max PCB: In-Line: 1000 x 400mm, UUT probing Single Side, Dimension:
INQUIRY

Flying Probe Testing Machine SPEA 4020 S2

Product Specification

Key Features

Best measurement accuracy

Accurate Micro-SMD contacting

No cost of fixturing

Intuitive programming

Zero errors at functional test

Field returns are practically eliminated

Miniaturization won’t stop and SPEA’s Flying Probe systems are ready for the future.

Top-performance linear optical encoders on XYZ axis

Micro-SMD (008004) pad accurate contacting

Reliable test of flexible/thin printed circuits, Sticky Boards

Positioning measurement stability over long time

Multi-Mode Probing

4020 S2 can combine the 4 high-speed top flying heads with additional tools to contact the bottom side of the board, increasing throughput and test capabilities.

Each flying probe can be used for in-circuit test, power-on test, sink/source analog, digital D/S, flashing via on-board programming, boundary scan, prescaler.

While using the 4 top probes to perform flying probe test from the top side, a bottom lifted platform can be used for bed-of-nails fixtures, multiple high-current power supplies, digital I/O, high-speed signals, fixed probes, planarity supports.

Leonardo OS2

Easy. Fast. Self-programming.

Automatic test program generation in minutes

Automatic test program generation with or without CAD file

– 50% test program generation time with new S2 System Control

Faster & fully automatic Debug & Tuning

Automatic board repair software

Automatic Pick & Place X-Y file import

Built-in Self-Test (BIST) compliant

User-friendly intuitive graphical interface

Control software to monitor, analyze & optimize the production process

Test Capabilities

IN-CIRCUIT TEST

100% SHORT CIRCUIT TEST

NODAL IMPEDANCE TEST

OPEN PIN SCAN

POWER ON TEST

FUNCTIONAL TEST

OPTICAL TEST

LED LIGHT TEST

3D LASER TEST

FLASHING

BOUNDARY SCAN

THERMAL TEST

WAVEFORM CAPTURE

BUILT-IN-SELF-TEST

Technical Data

model	4020 S2
Application	NPI Prototype
Throughput	Medium throughput
Chassis	Structural steel
UUT probing	Single Side
Multi-Probe Flying Heads	4 top
Max. Board Size (L x W)	Manual: 500 x 400mm (19.7 x 15.7’’) In-Line: 1000 x 400mm (39.4 x 15.7’’)*
Footprint (LxW)	1360 x 1220x1600mm

Code	Article	Product	UM	Qty	remark
45001278.144	4020s2IL BU500S	4020s2 IL; 4x Flying Probe Tester; In-Line Loading; High Speed; SMEMA Setup (h=950mm)	n.	1	Included
45017094.148	SIU 110	Smema interface unit; 4020s2/4050s2 compatible	n.	1	Included
45014945.160	SP 454	4020 Packing Box; Air Shipment Pallet	n.	1	Included
45001496.154	STO 100	Resistance-based Short Test	n.	1	Included
45017155.134	PRT 55	Internal test result printer; printing speed 50mm/sec; USB/RS232 interface; FP compatible	n.	1	Included
45018060.100	SSD 10	SPEA software dongle for stand-alone workstation or system (for new SW license only)	n.	1	Included
45014903.116	JCS 10	Open Pin Test; Junction Scan	n.	1	Included
45019690.162	DK 115	Base diagnostic tool; FP s2 compatible	n.	1	Included
45014254.117	AS 0	Test area 500x400 mm (20x16"); top side	n.	1	Included
45001819.146	YAICT 320FP	ICT instruments unit; dual 4Q DC source, ±10V/±100mA, ±50V/±100mA; DVM; Counter; Active guard; 8 row	n.	1	Included
45018375.165	IBL 720	In-line board loader; conveyor length 1500mm; automatic clamp; manual width adjustment; ESD compliant	n.	1	Included
45003276.138	VMA 100	Vision Module on axis 1; Color Camera; FOV 11x9mm; DOF 8mm; FP s2 compatible	n.	1	Included
45013854.148	1SM 100	12 months, software updating and call center support	n.	1	Included
45004734.129	LEO2 GOLD FLY	Leonardo OS2 Suite Fly - Gold - R1.80	n.	1	Included
45019627.169	CTI 600	Connector Tester Interface; up to 576 TP; 4020s2/4050s2 compatible	n.	1	Included
45004730.097	L2FLY	Leonardo OS2 FLY Execution [1 license] R1.80	n.	1	Included
45003779.192	WARP 12	Equipment Warranty (Plus version) - 12 Months	n.	1	Included
