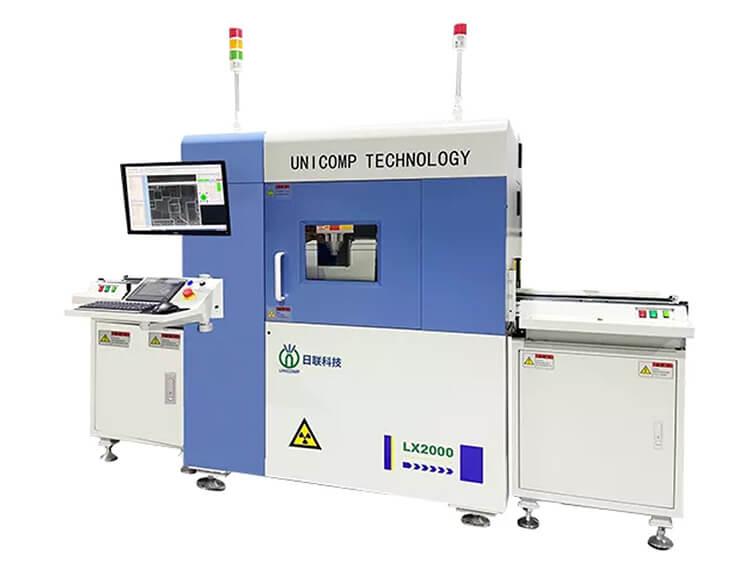

Inline X-Ray Inspection Machine LX2000-130KV

Focus Spot Size: 5μm
Voltage: 0~130kV
Weight: 1900 kg
Dimension: 2595×1392×1992mm
Product description: Inline X-Ray Inspection Machine LX2000-130KV, Focus Spot Size: 5μm, Voltage: 0~130kV, Weight: 1900 kg, Dimension: 2595×1392×1992mm
INQUIRY

Inline X-Ray Inspection Machine LX2000-130KV

Product Specification

Widely applied for BGA, CSP , Flip Chip, LED , Fuse, Diode, PCB, Semiconductor, Battery Industry, Small Metal Casting, Electronic Connector Module, Cables, Photovoltaic Industry, etc.
Application Fields
SMT/PCBA, Lead Frame, ntenna Module/Speaker Module, LED, Electric Module,
Functions and Feature
1. Auto Mapping
2. Auto Detecting and Analysing for Ok & NG Components)
3. Accurate Control, CNC Programming Automatic Positioning
4. Rework Database Management system
5. Support MES / ERP /SPC
6. Automatic Labeling Scanning

System Summary
Footprint	2595(W)×1392(D)×1992(H)mm
Machine Weight	1900 kg (X-Ray) / 700kg (Conveyor)
Power Supply	AC 110~220V, 50/60Hz
Plywood Packing Size	180(W)×170(D)×190(H)cm (X-Ray) 150(W)×105(D)×120(H)cm (Conveyor)
Packing Weight	2000kg (X-Ray) / 800kg (Conveyor)
Power Consumption	3.5 kW
X-Ray Tube
Tube Type	Sealed
Max. Power	8W
Voltage	0~90kV (Adjustable)
Focus Spot Size	5μm
Imaging System
Detector	Flat Panel Detector (FPD)
Pixel Size	85μm
Effective Detection Area	130*130mm
Frame Rates	20fps
Pixel Matrix	1536*1536
System Magnification	200X
Software
Auto-measuring	Auto Inspection and Analysing for Ok & NG Components
CNC Mode	CNC Programmable Inspection, Easy Operation and User Friendly
Rework	Support Rework Database Management System
Data Connection	Support MES/ERP/SPC System
Navigation	Convenient Target Point Positioning System
Motion Control System
Movement Control	Joystick, Keypad, Mouse & Touch Panel (PLC)
Adjustable Tunnel width	80~350mm
Max. Inspection Sample	400*350mm / 10kg
Min . Inspection Sample	100*80mm
Manipulator	Auto Inline System
Industrial PC
Monitor	22’’ FHD LCD Display
System OS	Windows 10 64bit
Hard disk	1TB
RAM	8GB
CPU model	Intel i7 Processor
Other Features
Energy Saving	X-Ray Auto-off when it's out of work over than 5 minutes
Safety Operation	Electromagnetic Interlock, Warning Light
Authority Management	Password Magnagement
X-Ray Safety	<1μSv/h (Meets All International Standards)
