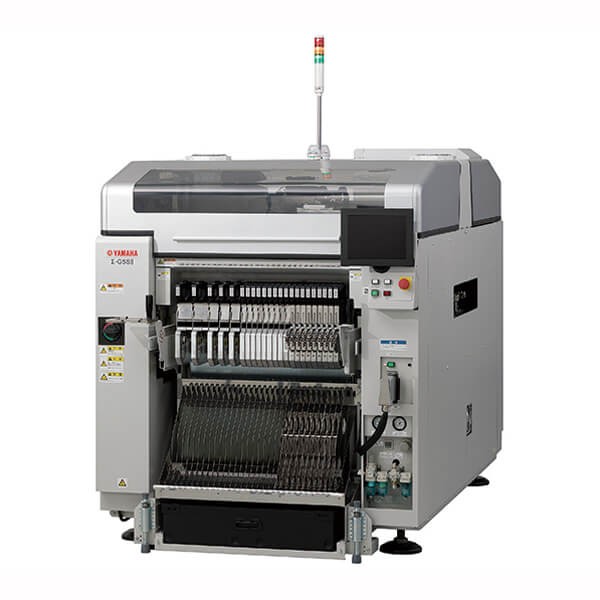

Yamaha sigma-G5S II Pick and Place Machine

Speed: 90,000 CPH
Applicable PCB: L610×W510 mm to L50×W50 mm
Weight: 1,800KG
Dimension: L1,280×W2,240×H1,450 mm
Product description: Yamaha sigma-G5S II Pick and Place Machine, Speed: 90,000 CPH, Applicable PCB: L610×W510 mm to L50×W50 mm, Weight: 1,800KG, Dimension:L1,280×W2,240×H1,450 mm
INQUIRY

Yamaha sigma-G5S II Pick and Place Machine

Specifications:

Newly-developed Auto Loading Feeder (ALF) that revolutionizes feeding tape components by eliminating reliance on user skill
Yamaha Motor has developed a new ALF that allows any operator to easily supply tape components by merely inserting the tape, all without stopping the machine. Yamaha’s unique center-open system, which eliminates the need to remove the top tape, reduces pick-up errors due to static electricity from fuzz or peeling.
In addition, a Yamaha-exclusive tape setting mechanism that extends towards the operator to simplify tape setting and a mechanism that allows for two reels to be set at once on the feeder greatly improves ease of use for the operator.
The ALF also offers a splicing-less* feature that significantly boosts operating rate by reducing machine downtime and work time, reducing the running cost for splicing work and making the recovery of top tape unnecessary. This ALF will be available on all current YS Series mounters (limited to those with the tape cutter specification) as an option.
*Eliminates the need to splice new tape to the existing tape being used when feeding components into the tape feeder, the device feeding electrical components.
sATS30NS Auto Tray Sequencer (ATS) for nonstop tray replacement
The “sATS30” 30-step fixed automatic tray supply unit has gained a new feature that removes empty trays and supplies new trays without interruption of automatic operation. Simply replace the empty trays, which are automatically ejected, with new trays and press the feed button to automatically set the new trays in the magazine. In addition, the entire magazine can be replaced during production changeovers.
Nonstop feeder carriage exchange system
Previously, the machine had to be stopped when removing the feeder carriage exchange to ensure safety. Now, Yamaha has installed a sliding shutter cover over the pick-up area of the opening that is created when the carriage is removed. The shutter automatically closes when the carriage is removed, eliminating the need to stop the machine for carriage replacement and thus improving machine operating rate.

Basic Specifications

Model	sigma-G5S II
Applicable PCB dimensions	Single lane	L610×W510 mm to L50×W50 mm (Optional: L1,200×W510 to L50×W50 mm)
	Dual lane	L610×W250 mm to L50×W84mm (dual feed) L610×W415mm (single feed)
Mounting capability	High-Speed Multi-Head×2 specifications: 90,000 CPH (single lane/dual lane)
Applicable components	High-Speed Multi (HM) Head	0201 to L44×W44×H12.7 mm or under
	Flexible Multi (FM) Head	1005 to L72×W72×H25.4 mm or under Connector: 150×26 mm
Mounting accuracy	High-Speed Multi (HM) Head	0201/03015: ±25?m/80,000 CPH 0402: ±36 ?m/85,000 CPH 0603: ±40 ?m/90,000 CPH
	Flexible Multi (FM) Head	±0.015 mm
Component types	120 types max. (8 mm wide tape equivalent)
Power supply	3-phase AC200V ±10%, 50/60Hz
Air supply	0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)
Exterior dimensions	L1,280×W2,240×H1,450 mm
Weight	Approx. 1,800 kg
