  • Yamaha sigma-F8S surface Mounter

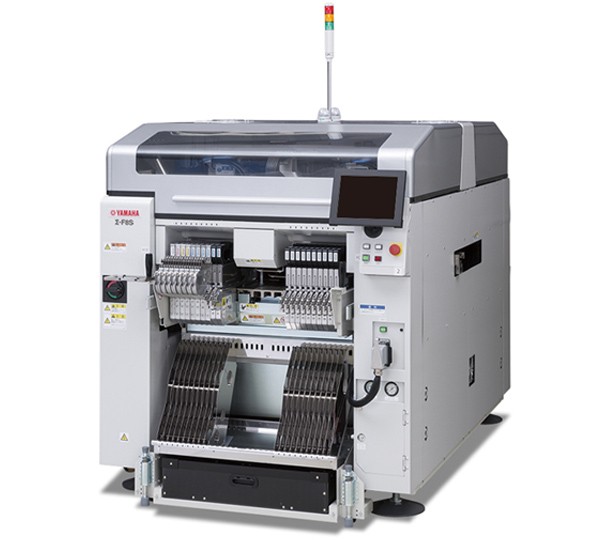

Yamaha sigma-F8S surface Mounter

Yamaha sigma-F8S surface Mounter

  • Speed: 150,000 CPH
  • Applicable PCB: L 330 x W 250 mm
  • Weight:1,940KG
  • Dimension: L 1,280 x W 2,240 x H 1,450 mm
  • Product description: Yamaha sigma-F8S surface Mounter, Speed: 150,000 CPH, Applicable PCB: L 330 x W 250 mm - L 50 x W 50 mm, Weight:1,940KG, Dimension: L 1,280 x W 2,240 x H 1,450 mm
  • INQUIRY

Yamaha sigma-F8S surface Mounter

Specifications:


1) Improved productivity and accuracy due to revised XY axis design
Introduction of leading-edge control technology together with the adoption of an off-set type linear motor through a logic-based design revision of the XY drive axes. The supporting beam of the head has been made more lightweight and with reduced vibration. Because of this, the effective tact delivers a 5% productivity improvement on average over existing models. At the same time, mounting accuracy of ± 25um (3sigma), which corresponds to handling the extremely small-sized 0201 chip components, has also been achieved.
2) Compatibility with Current sigma Series Model
Compatibility of the main options with the current model ?-F8 has been maintained, including with the head, nozzle, nozzle stocker, and tape feeder. This allows for users of the current ? series to continue to use their specialized equipment as they implement this new equipment hassle free.
Z:LEX YSM20W New Model Features
1) Outstanding versatility thanks to industry top level PCB adaptability
Handles a maximum PCB width of up to 356 mm where the same width PCB is being conveyed at the front and rear while in dual-lane specification mode. In this case, the head will continue to function without front or rear head strike for up to a maximum PCB width of 324 mm achieving high-efficiency implementation without loss.
In single-lane specification mode, PCBs can be conveyed at up to a maximum length of 810 mm, maximum width 742 mm, a conveyable weight of up to 10 kg, and a thickness of up to 8 mm. This new model is also compatible with a wide range of extra-large-sized PCB's and jig conveyance etc., including for automotive products, industrial, medical, power devices, and LED lighting.
Basic Specifications

Model

sigma-F8S

Applicable PCB
Dimensions

Single lane

L 330 x W 250 mm  -  L 50 x W 50 mm
(Option: L 381x W 510 mm  -  L 50 x W 50 mm)

Dual-lane

L 330 x W 250 mm  -  L 50 x W 50 mm

Applicable Components

High-speed head: 0201 - 4.3 x 3.4 mm
(Height 2.0 mm or less)

High-speed Multi-Purpose head 03015- 33 mm
(Height 12.7 mm or less)

Mounting capability
(The Company's optimum
conditions)

High-speed head x 4 Spec:
150,000 CPH (Dual-lane)
136,000 CPH (Single lane)

Mounting accuracy
*In the Company's optimum
conditions
(standard material used for
evaluation)

High-speed Head:
0201/03015: ±25um (3sigma) (140,000CPH)
0402/0603: ±36um ( 3sigma) (150,000CPH)

Number of component types

Max 80 types (8 mm width tape conversion)

Power supply

Three-phase AC 200±10%  50/60 Hz

Air supply

0.45 MPa or more, clean and dry state

External dimensions
(not including projected parts)

L 1,280 x W 2,240 x H 1,450 mm

Weight

Approx. 1,940 kg (Not including cart)
