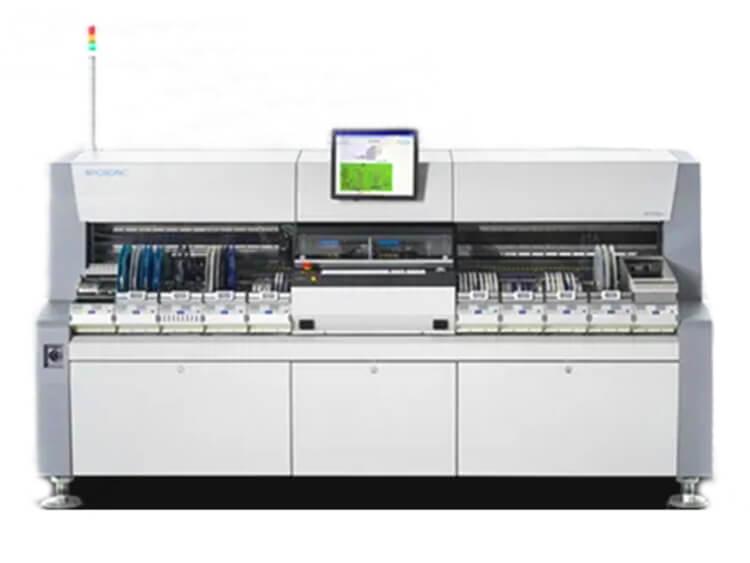

SMT Pick and Place Machine Mycronic MY300HX

Maximum board size: 460 x 510 mm
Speed: 45,000 CPH
Weight: 1500 kg
Dimension: 2082x1632x1438mm
Product description: SMT Pick and Place Machine Mycronic MY300HX, Maximum board size: 460 x 510 mm, Speed: 45,000 CPH, Weight: 1500 kg, Dimension: 2082x1632x1438mm
INQUIRY

SMT Pick and Place Machine Mycronic MY300HX

High-speedHigh-speed chip mounter, with up to 45,000 CPH
High accuracyHigh accuracy and repeatability for fine pitch placement
Agilis feeder technologyAgilis feeder technology featuring up to 160 feeder positions

Master complexity. Grow your business.
Populate more boards. Not more floor space.
Get more jobs done in less space with Mycronic's pick-and-place machines. Thanks to the machines’ compact design, up to 224 intelligent feeders can be accommodated within a surprisingly small footprint.
Switch effortlessly from full volume to batch size one. Handle a wider range of components with uncompromising production quality, total stock accuracy and complete traceability down to individual PCB serial number.
The MY300 delivers SMT pick-and-place at next level precision and flexibility in a fast, small and smart format.
Key benefits:
Up to 160 feeder positions
Top speed of 45,000 CPH
Chip placement from 01005 package size
Placement of SO28, SOT223, SOJ20, PLCC32, MELF, SOD, TSOP with 0.4 x 0.2 mm minimum dimensions

Electrical verification of resistors, capacitors, diodes and transistors (optional)

Maximum board size	460 x 510 mm
Maximum board size with ML adaptor	419 x 443 mm
Minimum board size	70 x 50 mm
Board thickness range	0.4 – 6.0 mm
Board edge clearance top and bottom	3.2 mm (0.13”)
Top side clearance (max)	15 mm (0.59”)
Bottom side clearance (max)	32 mm (1.25”)
Rated speed	40 000 CPH
Maximum board weight	4 kg (8.8 lbs)
IPC 9850 chip tact time	0.103 s
IPC 9850 chip repeatability	30 μm, 1.8° (6) 45 μm, 1.8°
IPC 9850 chip accuracy	50 μm, 2.6° (6) 75 μm, 2.6°
IPC 9850 ﬁne pitch repeatability	21 μm, 0.05°
IPC 9850 ﬁne pitch accuracy	35 μm, 0.09°
Power requirements	Three phase AC 6.6 kVA (3 x 2.2 kVA)
Power consumption	1.5 kW (average)
Voltages	3 x 200, 210, 220, 230, 240, 250 +/- 10%, Y or Delta
Air supply	No air required
Noise	70 dBA
Air temperature	+18 to +35¦°C (65 to 95¦°F)
Air humidity	<¦95% RH non condensing
Weight MY300HX-9	1,500 kg (3,300 lbs)
Weight MY300HX-13	1,600 kg (3,500 lbs)
Dimension: MY300HX-9	2082x1632x1438mm
Dimension: MY300HX-13	2809x1632x1438mm
