  • JT Wave Soldering Machine WS-450

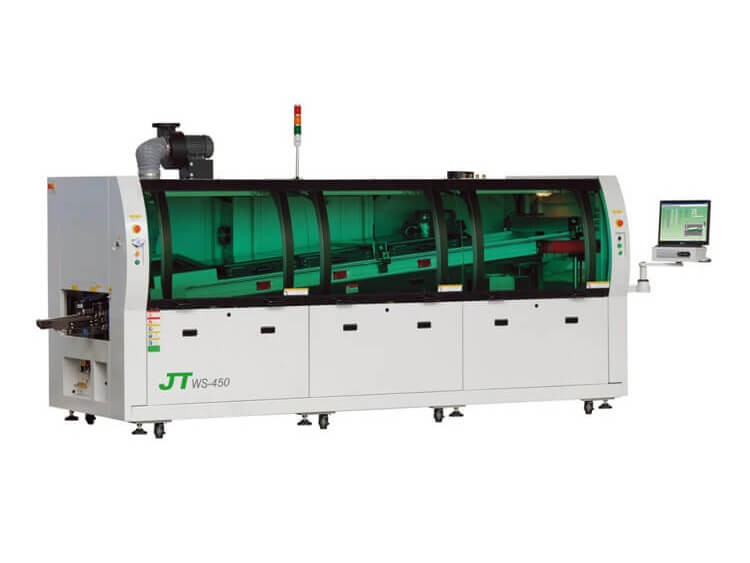

JT Wave Soldering Machine WS-450

JT Wave Soldering Machine WS-450

  • No. of preheating zones:4
  • Preheating length: 2480 mm
  • Control system: PC + PLC
  • Dimensions 4350(L) x 1600(W) x 1730(H) mm
  • Product description: JT Wave Soldering Machine WS-450, No. of preheating zones:4, Preheating length: 2480 mm, Control system: PC + PLC, Dimensions 4350(L) x 1600(W) x 1730(H) mm
  • INQUIRY

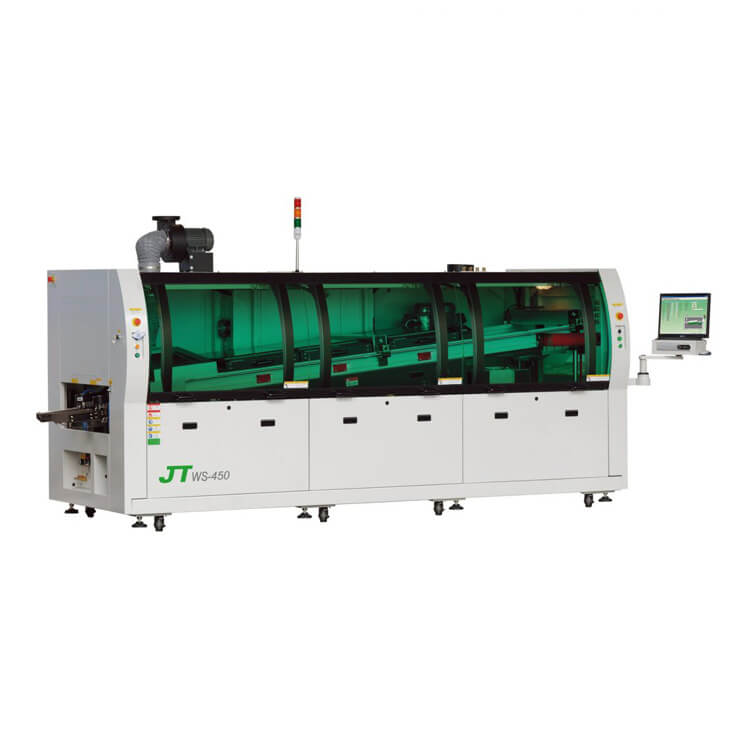

JT Wave Soldering Machine WS-450

INTRODUCTION:



JT Wave Soldering Machine WS-450

DESCRIPTION
Free combination of preheating module can be arbitrary chosen hot air and infrared preheating Preheat diverse portfolio
Maximum transport capacity of the entire rail 60 kg, meet the demanding production needs
Low tin slag amount of oxidation, new wave nozzle design, tin furnace has automatic access lifting function
Regional selective spray flux can save more than 70%
Free combination of preheating module can be arbitrarily chosen hot air and infrared preheating preheat diverse portfolio
Segmented transport rail design, 60 kg rail transport capacity, the maximum width of products through increased to 610 mm

SPECIFICATIONS

Dimensions

4350(L) x 1600(W) x 1730(H) mm

Power supply

3P 5 W, 380 VAC, 50/60 Hz, 63 A

Power

80 kW

Total power

45 kW

Working power

Approx. 12.5 kW

Control system

PC + PLC

No. of preheating zones

4

Preheating length

2480 mm

Preheating temp.

Room temp - 250°C

PCB size

50 - 450 mm

Height

Top: 120 mm; Bottom: 25 ± 5 mm

Speed

300 - 1800 mm/min

Entry height

750 ± 20 mm (Option: 900 ± 20 mm)

Conveyor angle

4 - 7°

Conveyor motor power

90 W 3P 220 VAC
