  • JT Selective Soldering Machine ZSWHPS-12

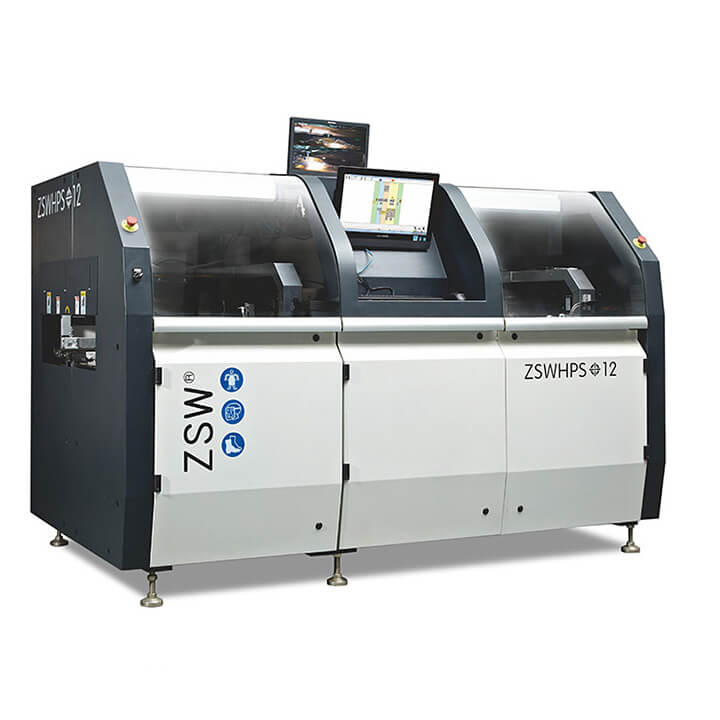

JT Selective Soldering Machine ZSWHPS-12

JT Selective Soldering Machine ZSWHPS-12

  • PCB Size: 510 x 450mm
  • Control System: 3-axis with servo drives
  • Maximum Solder Temperature: 350°C
  • Dimension (L*W*H):2453 x 1733 x 1645mm
  • Product description: JT Selective Soldering Machine ZSWHPS-12
  • INQUIRY

JT Selective Soldering Machine ZSWHPS-12

Specifications:


Specifications:

Dimension (L*W*H)

2453 x 1733 x 1645mm

Transport Width Adjustment

50mm - 450mm

Transport Width Adjustment Mode

Automation

PCB Size

510 x 450mm

PCB Transport Direction

Left to Right

Conveyor Fix Mode

Front

Conveyor Height

850 ± 20

Flux & Preheating Module Transport Speed

11m/min

Solder Model Transport Speed

9.8m/min

Top Heator Power

4kW

Bottom Heator Power

4.8kW

Top & Bottom Heator Voltage

220V

Maximum Solder Temperature

350°C

Maximum Solder Wave Height

5mm

Position Accuracy

± 0.15mm

Maximum Pot Moving Speed

5.8m/min

Control System

3-axis with servo drives

DESCRIPTION
Free combination of preheating module can be arbitrary chosen hot air and infrared preheating Preheat diverse portfolio
Maximum transport capacity of the entire rail 60 kg, meet the demanding production needs
Low tin slag amount of oxidation, new wave nozzle design

Keywords:

Wave Soldering Machine, Dual Lane Wave Soldering Machine, Nitrogen Wave Soldering Machine, China Wave Soldering Machine, Wave Soldering Machine Manufacturer.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven Manufacturer, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT Inspection Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]


FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
