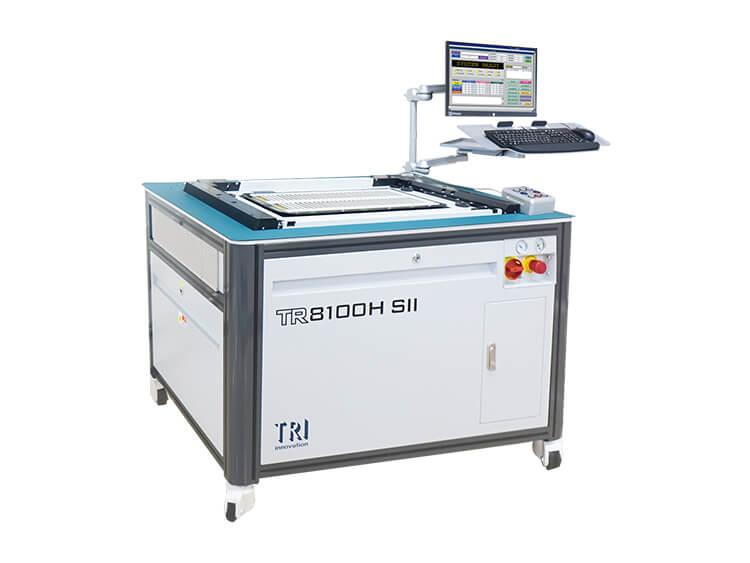

In-Circuit Tester TRI ICT TR8100H SII

Weight: 390 kg
Dimension: 1150 x 850 x 800 mm
Product description: In-Circuit Tester TRI ICT TR8100H SII, Weight: 390 kg, Dimension: 1150 x 850 x 800 mm
INQUIRY

In-Circuit Tester TRI ICT TR8100H SII

Product Specification

The TR8100H SII is the latest ICT with High Throughput and High Accuracy for large and complex PCBAs. The TR8100H SII is the top-of-the-line board test system targeting the low-voltage testing market. TR8100H SII's vacuum fixture system ensures full pin contact, and with up to 11,088 pins digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development. The ICT has built-in self-diagnostics to ensure long-term testing reliability.

• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Built-in Self Diagnostics function
• High-Accuracy Measurement and Testing
• Friendly UI, easy program development

Tester Specifications
Analog test points	TR8100H SII: 7056
Analog test points	TR8100HL SII: 11088
Operating System	Microsoft® Windows compatible PC, Windows 10
Fixture Type	Vacuum type
Standard Testing Components
Analog Test Hardware	6-wire measurement switching matrix
	Programmable AC/DC/DC High voltage and current sources
	AC/DC voltage, DC current measurement, frequency
	Component R/L/C measurement
	Synthesized Arbitrary Waveform Generator
	TestJet vectorless open circuit detection
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting
	DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A
	On-board Flash, EEPROM, MAC programming
Optional Components
Analog Hardware	Fixture Conversion Kits for Teradyne, GenRad
Digital Testing	APPS Power Supplies: Programmable 75 V/8 A/200 W Max., 1 Channel
	Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test
	Serial Test Controller (STC) Programming
	DPS Programmable DUT Power supply:
	(1) DPS3514: 30Vmax/5Amax/100Wmax per channel /4CH per DPS
	(2) DPS3122: 30Vmax/10Amax/200Wmax per channel /2CH per DPS
	ToggleScan Test
Yield Management System	YMS 4.0
Dimensions
WxDxH	TR8100H SII: 1150 x 850 x 800 mm
WxDxH	TR8100HL SII: 1400 x 850 x 800 mm
Weight	TR8100H SII: 390 kg
Weight	TR8100HL SII: 450 kg
