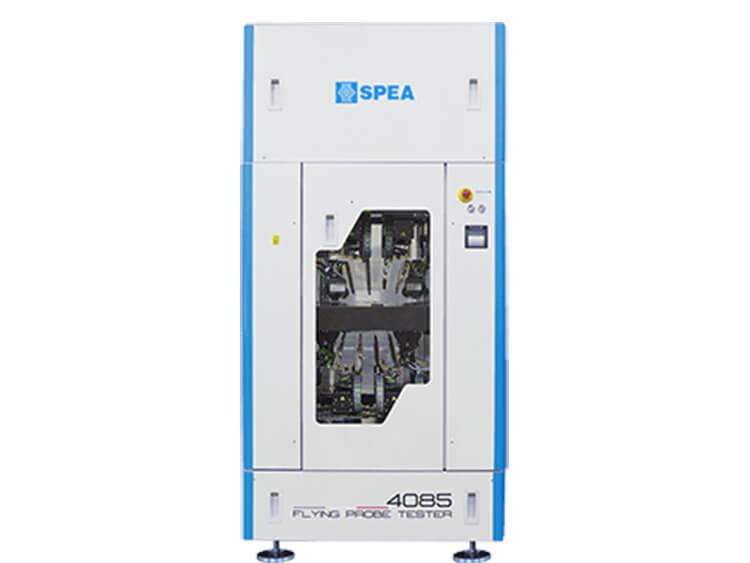

Flying Probe Testing Machine SPEA 4085

8x Probing head
Dual side probing
Max PCB: 500 x 187mm
Dimension: 1285 x 1000 x 2063 mm
Product description: Flying Probe Testing Machine SPEA 4085, Automatic 8x Flying Probe Tester, the most compact ever. 8x Probing head, Dual side probing, Max PCB: 500 x 187mm, Dimension: 1285 x 1000 x 2063 mm
INQUIRY

Flying Probe Testing Machine SPEA 4085

Product Specification

4085 is the most performing and yet most compact automatic 8x flying probe tester on the market. Its top throughput – over 800,000 boards tested in a year – makes it suitable for high-volume production test. The high probe positioning accuracy and repeatability, respectively equal to 10μm and 5μm, enable to test high-density boards, with micro-pads smaller than 50μm and SMD 01005 components. Like the ones that characterize latest-generation electronic products: smartphones, tablets, laptops and embedded PCs, routers, wearable devices, flexible circuits, LED strips, sensors, home automation. In addition, the system is designed to be able to contact even more miniaturized components, such as SMD 008004. Furthermore, the unmatched testing capabilities of 4085 are enclosed in an extremely small machine, with a footprint of only 1.29m2.

Full test coverage on 5G devices
The wide range of test techniques available on 4085 automatic tester includes RF Test, also for 5G devices, and Optical Test, through high-resolution cameras with liquid lenses. The same system can also run test programs which integrate techniques such as In-Circuit Test, Short Circuit Test, Open Pin Scan, Power-On Test, Functional Test, Boundary Scan, Flash Programming, Thermal Inspection, Light Chromaticity & Intensity Test. Thus ensuring a full coverage and the detection of every defect on the units under test.

A single Flying Probe Tester
for testing a whole range of applications
Smartphones
Tablets
Laptops
Modems & Routers
Wearable devices
Sensors
Home automation
Flexible circuits
LED strips

Compact design
4085 systems feature the most advanced flying probe technology within a compact and functional structure. Their performance/dimensions ratio is truly unique: each tester requires only 1.29m² of industrial space, including the integrated conveyor. The units under test can be loaded manually or automatically: the tester’s SMEMA and HERMES interfaces allow for rapid integration into the production lines.
Furthermore, the system can be integrated with SPEA Board Loaders to compose a fully automatic and extremely compact test cell: a 4085 tester combined with a bidirectional Board Loader, for example, occupies less than 2m in length and less than 2.3m² in total area.

Top performance for the most compact automatic 8x flying probe tester

RF Test for 5G technologies
RF Test is a functional test technique for consumer electronics production and repair operations, used to verify the correct functioning of radio frequency components for the reception and transmission of signals from 500 MHz to 6 GHz.
READ ALL
Unparalleled throughput
The mechanical hyper-speed of 4085 automatic flying probe tester makes it able to test from 100,000 to over 800,000 electronic boards per year, in line with the needs of high-volume production. Linear motion technology, with linear optical encoders installed on each X-Y-Z axis, provides unrivaled acceleration and speed, reaching up to 180 touches per second with 8 flying probes on top and bottom sides.
Ultra-accurate positioning
4085 flying probe tester has been designed to meet the testing needs of new microelectronic technologies, which require a higher degree of precision. Linear optical encoders with sub-micron resolution equipped directly on the system axes provide very high positioning accuracy (20μm) and consistent repeatability (5μm) in contacting SMD 01005 components and test pads also smaller than 50μm.
READ ALL
No Damage Touch
The small and delicate test pads of latest-generation electronic devices must be contacted by the flying probes with a controlled-force landing profile, in order to avoid marks that could degrade the contact point. Production testing of the latest microelectronic technologies requires the ability to quickly and safely touch SMD 01005 components and test pads even less than 50µm in size.

Automatic Board Handling
The UUT handling to 4085 tester can be automated with in-line conveyors or with SPEA Board Handling Equipment, designed and manufactured to perform autonomous loading and unloading operations.

When combined with a 4085 system, the most compact 8x flying probe tester ever, they form an extraordinarily compact automatic test cell: the highest test efficiency within the lowest required floor space.

Max touches	160 touches/sec (@2.5mm pitch movement)
Multi-Jig Flying Heads	8 (4 top + 4 bottom)
Test interface	Yes, up to 384 channels
Min. Pad Size	50µm
Min. Pitch	100µm
Linear Motors on X-Y-Z axis	Yes
Linear Measuring Encoders on X-Y-Z axis	Yes
Encoder positioning resolution	0.0012µm
Instrument on the Head Technology	Yes
DImensions	1285 x 1000 x 2063 mm
Noise level at 100cm	50dB
Line Voltage	230Vac ±10% (single phase) 208 - 400Vac ±10% (3phase)
Frequency	50 - 60Hz
Measure Capability Resistance	1mΩ - 1GΩ
Measure Capability nductance	1µH - 1H
Measure Capability Capacitance	0.5pF - 1F
Max. Test Area	500 x 181mm
Max. Board Size	500 x 187mm
Max. Component Height	45mm
Board edge clearance	2mm
Max. board thickness	10mm
Operating System	Giotto OS3, App Library
Automatic test program generation	Yes (even without CAD file)
Electrical test
ICT - In Circuit Test	Yes
NZT Nodal Impedance Test	Yes
Open Pin Scan	Yes
Power On Test	Yes
Functional Test	Yes
On-Board Programming	Yes
Boundary Scan	Yes
