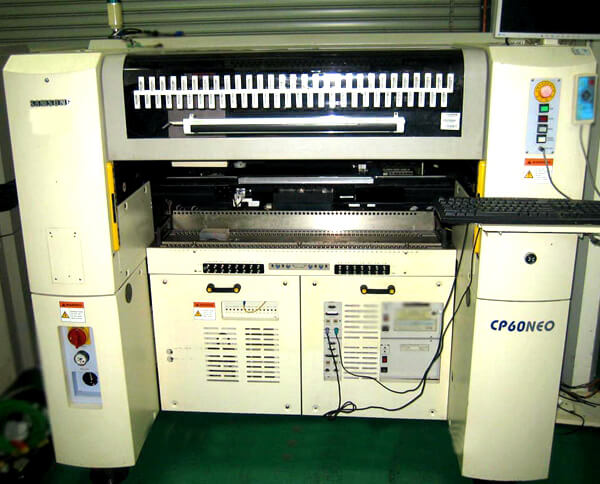

Samsung CP60 Pick and Place Machine
Faster 1 double cantilever - synchronous servo control system, two completely independently
driven cantilevers, 12 placement heads. 2. The Linear Scanning Optical System (LSO),
More flexibility 1. Wide range of components, high-speed mounting from 0603 (0201) to
which has been successfully applied in CP60, improves the scanning speed and the ability
to handle micro-elements. 3. Dual rail transfer system, reducing the PCB transfer time.
24mm IC, BGA and QFP.2. Effective feeder, can load a total of 116 8mm feeders to
Samsung CP60HP parameters
Alignment: Line Scan Optics
Mounting Speed: 0.1 sec / CHIP IPC9850 30000 CPH IC 0.6 SEC / QFP100
Mounting accuracy: ± 0.08 (3 sigma), 0603
Component Range: 0603 (0201) -24mm QFP, BGA Minimum
reduce the refueling time, Improve equipment utilization.
Pin Distance 0.65mm (Pin Pitch), 1.0mm (Ball Pitch)
PCB maximum size: 500 * 320 * 4.2
Number of feeders: 116 (8mm)
Dimensions: 1,900 * 1,870,1,470
Energy consumption: 3.4KVA
Weight: about 2100KG
Model: CP-60 NEO
Category: PC BOARD ASSEMBLY AND MANUFACTURING
Pick and place systems Left to right flow Front fix (Qty 2) 8x2mm feeders
