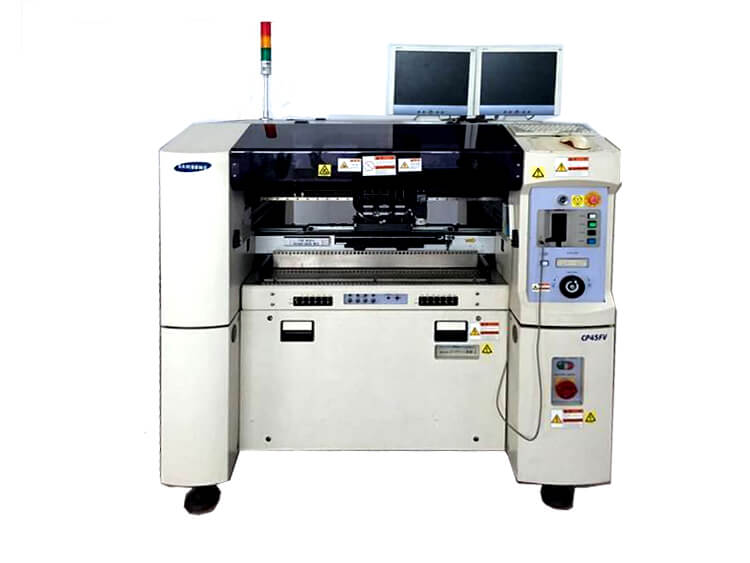

Samsung CP45FV NEO Pick and Place Machine
Project CP45FV NEO
Visual method Vision (Fly Vision + Stage Vision)
Mounting Speed Chip top speed 0.178sec / chip
IPC9580 14900CPH (1608)
IC Flight Camera 0.75sec / QFP64
Fixed camera 1.6sec / QFP256
Mounting accuracy 0603 (0201) Chip ± 0.08mm
1005Chip ~ ± 0.1mm
QFP ± 0.04mm
Component Dimensions Flight Camera 1005 (0402) ~ □ 22mm IC, 0603 (0201) ~ □ 12mm (Option)
Standard Fixed Camera (FOV35) ~ □ 32mm IC (Lead Pitch: 0.4mm)
Special Fixed Camera (FOV20) ~ □ 17mm IC (Lead Pitch: 0.3mm)
Special Fixed Camera (FOV45) ~ □ 42mm IC (Lead Pitch: 0.5mm)
Leading Pitch (QFP) 0.3mm (with FOV20 Vision)
Min. Ball Pitch (BGA) 0.5mm (with FOV20 Vision)
Parts up to 15mm (9mm: with flying vision)
PCB board size 460X400X4.2 ~ 50X30X0.38 / 510X460X4.2 ~ 50X100X0.38 (CP45-L NEO)
JUKI Pick and place Machine, Samsung Pick and Place Machine, Hanwha Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Pick and Place Machine.
|Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including
SMT Reflow Oven Manufacturer,
Wave Soldering Machine,
Pick and Place Machine,
SMT Stencil Printer,
SMT Inspection Machine,
SMT Reflow Oven,
SMT Peripheral Equipment,
SMT Assembly line,
SMT Spare Parts
etc any kind SMT machines you may need, please contact us for more information:
wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
