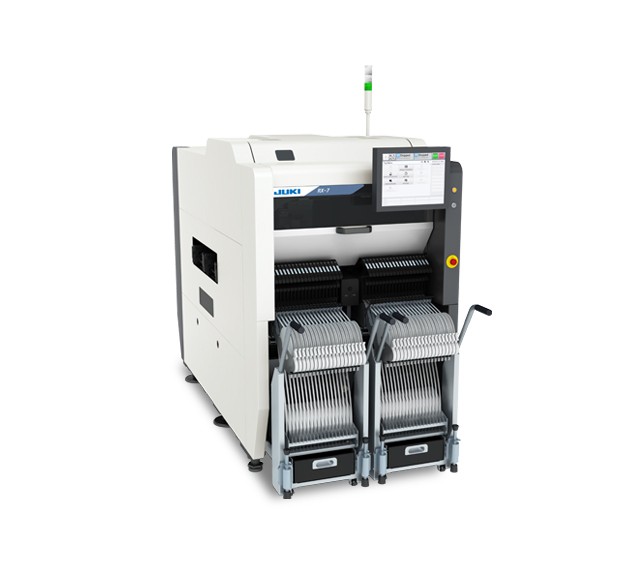

JUKI RX-7 Pick and Place Machine

JUKI RX-7 Pick and Place Machine

  • Applicable Components: 0402 (01005) ~ 5mm
  • Board size:50 X 50 ~ 360 X 450mm
  • Feeder inputs:max 76
  • placement capacity:75,000CPH
  • Product description: JUKI RX-7 Pick and Place Machine, Applicable Components: 0402 (01005) ~ 5mm,Board size:50 X 50 ~ 360 X 450mm,Feeder inputs:max 76,placement capacity:75,000CPH

JUKI RX-7 Pick and Place Machine


JUKI RX-7 Modular Pick and Place Machine,Applicable Components: 0402 (01005) ~ 5mm,Board size:50 X 50 ~ 360 X 450mm,Feeder inputs:max 76,placement capacity:75,000CPH

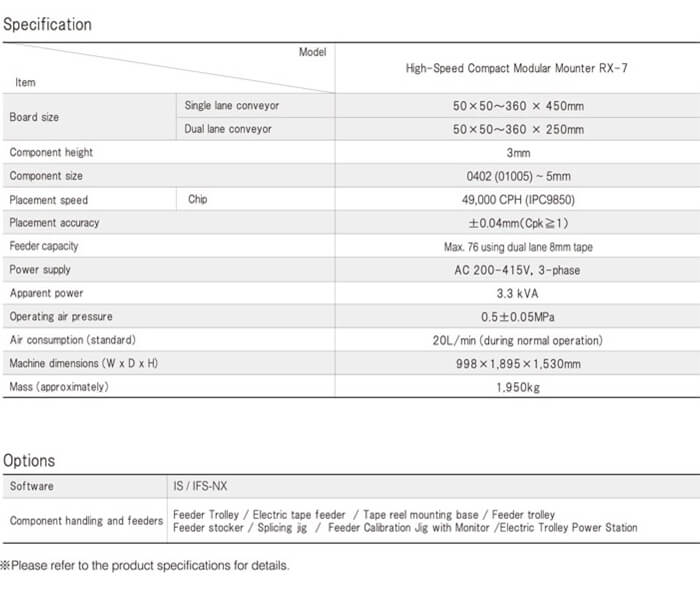

Single Lane Conveyor:
50 X 50 ~ 360 X 450mm
Dual Lane Conveyor:
50 X 50 ~ 360 X 250mm
Component Height: 3mm
Component Size:
0402 (01005) ~ 5mm
Max.76 using dual lane 8mm tape
Placement Speed (chip):
Chip Optimum: 75,000CPH
Placement Accuracy:
Laser Recognition: ±40μm (Cpk≧1)

Placement speed ( Optimum) Chip : 75,000CPH*1
Component size : 03015*2~25mm x 25mm
P16 nozzle head that realizes high-speed high-density placement of very small components
P8 nozzle head that realizes high-speed and high-accuracy placement of middle and small general-purpose components
Space-saving design with a width of 998 mm
This is applicable to the dual lane production.
An optimum production line can be configured for each production item through a combination of heads.
High productivity based on an original planet head and a structure of parallel two heads
This is applicable to small-size IC components ranging from 03015 chip*2 to 25 mm square to be placed.
*1 When using P16 nozzle head. *2 Please contact to us for detail.

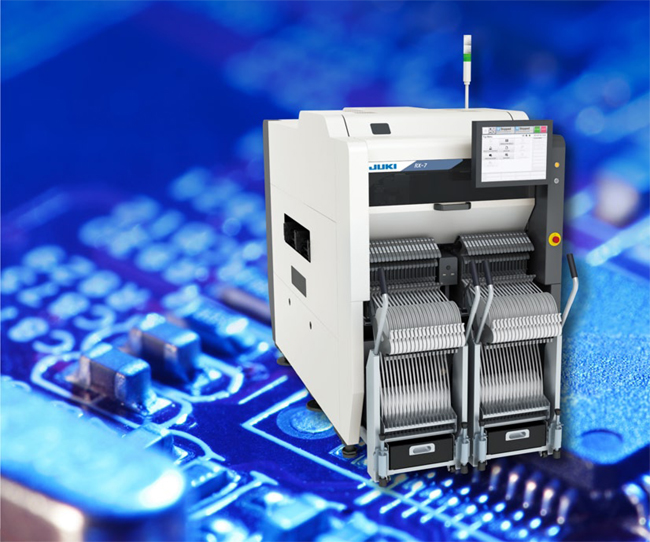

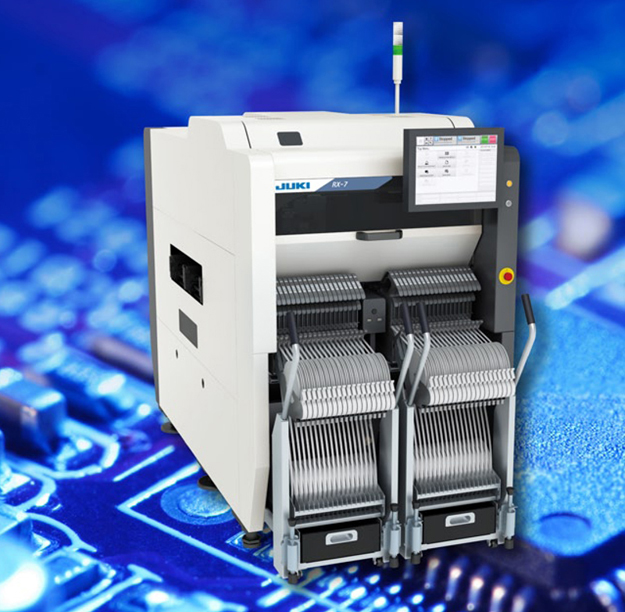

High-Speed Compact modular mounter RX-7

nozzle head

nozzle head

nozzle head

Board size

Single lane conveyer

50×50510mm*1 x 450mm

Dual lane conveyer

50×50510mm*1 x 250mm

Component height



(P16 nozzle head)



P8 nozzle head)

Component size

03015*25mm x 5mm

5mm x 5mm
(P16 nozzle head)

25mm x 25mm

25mm x 25mm
(P8 nozzle head)

Placement speed (Optimum) chip



54,900 CPH

34,800 CPH



6,400 CPH*3

12,800 CPH

Placement accuracy






Component loading quantity

38 (76 in case of 8mm tape) *4
