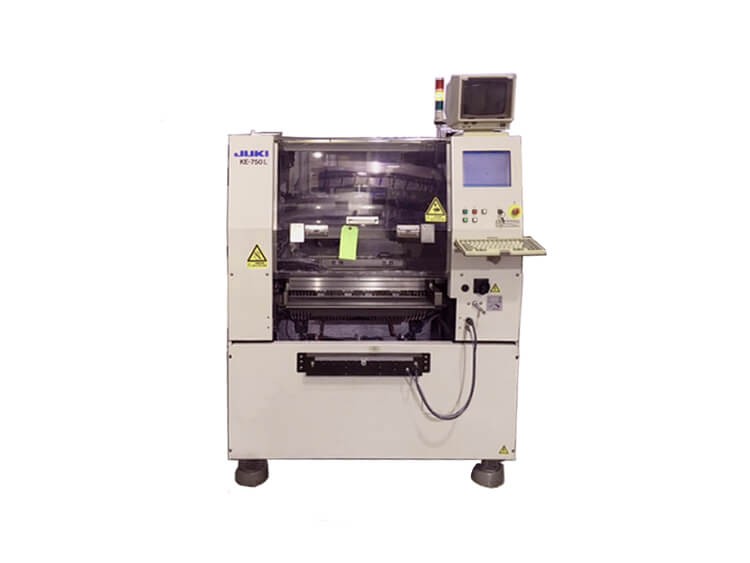

JUKI KE750 Pick and Place Machine
JUKI750 Placement machine is a medium-sized multi-function placement machine,
generally 1998-2000 equipment. Three heads, laser alignment, accuracy 0.08MM.
As an economical device, 750 Mounter low risk, medium speed, and more Function, low cost.
JUKI 750 placement head: 3
JUKI750 expected station: 80
Placement speed: 0.25sec / chip (3 at the same time attached to the attached)
JUKI750 placement accuracy: ± 0.1mm chip ± 0.09mm QFP (Laser)
Placement range: 1005 ~ 23.5mm (By Laser)
JUKI750 PCB size:
Maximum: 330 * 250mm
Min: 50 * 30mm
PCB thickness: 0.4 ~ 4mm
JUKI750 appearance size: 1400 * 1440 * 1460 (including lights 2000mm)
JUKI mid-speed placement machine 750
automatic / manual: automatic
Patch speed: 8000 (grain / hour)
L: 50.0 mm (min) -330.0 mm (max), W: 30.0 mm (min) -250.0 mm (max).
PCB thickness:: 0.40mm (min) -4mm (max)
Component placement range:
0402-48mm * 48mm (chip, sot, sop, melf, QFP, connector, sop, plcc)
Component height: 0.3mm-10.5mm.
Pin spacing (Min): 0.4mm.
Component Dimensions: 0.5mm * 1.0mm (Min), 23.5mm * 23.5mm (Max).
Nozzle Model: 10X, 20X.
Mounting accuracy: ± 0.1mm (LA), ± 0.04mm (LAIC)
Mounting Speed (Max): 11,250 components / hour
speed:0.25s 3 heads
laser collection accuracy:0.08mm
angle accuracy :0.001 degree.
thickness of PCB: 0.4mm~4mm
component size: 1.0*1.0*0.5MM~32MM*11MM.QFP 20MM*20MM. for bigger size optional
power supply: single phase
Flason have a good check and a test before shipping out.
2. We provide you the friendly English User manual or the operating videos for free;
3. 24 hours technical support by email or Skype or Trade Manager or Calling.
4. 1 year machine parts free warranty;
JUKI Pick and place Machine, Samsung Pick and Place Machine, Hanwha Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Pick and Place Machine.
|Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including
SMT Reflow Oven Manufacturer,
Wave Soldering Machine,
Pick and Place Machine,
SMT Stencil Printer,
SMT Inspection Machine,
SMT Reflow Oven,
SMT Peripheral Equipment,
SMT Assembly line,
SMT Spare Parts
etc any kind SMT machines you may need, please contact us for more information:
wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
