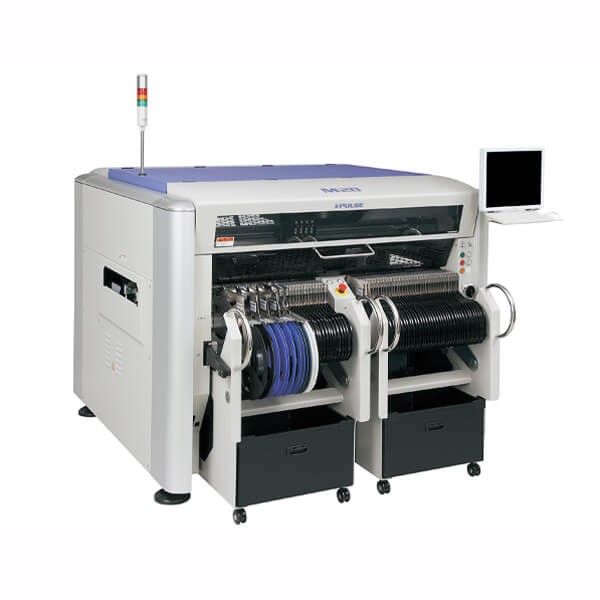

Yamaha M20 Hybrid pick and place machine

Speed:30,000 CPH
Applicable PCB: L1,480 x W510mm
Weight:1450KG
Dimension:L1750xD1750xH1420mm
Product description: Yamaha M20 Hybrid pick and place machine, Speed:30,000 CPH, Applicable PCB: L1,480 x W510mm, Weight:1450KG, Dimension:L1750xD1750xH1420mm
INQUIRY

Yamaha M20 Hybrid pick and place machine

Specifications:

Handling max. 1,480mm ultra long board as standard

· Revolutionary and unique new features included as standard

· New Multi-Conveyor System providing the highest large board handling capability

· 3D hybrid placement functions

· Wide ranging component handling capability and high feeder capacity

· Ultimate flexibility and fast & easy setup

	M20
Board size(with buffer unused)	Min. L50 x W30mm to Max. L1,480 x W510mm*1
Board size(with input and output buffers used)	Min. L50 x W30mm to Max. L540 x W510mm
Board thickness	0.4 - 4.8mm
Board flow direction	Left to right (Std)
Board transfer speed	Max 900mm/sec
Placement speed (4 heads + 1 theta) Opt. Cond.	0.15sec/CHIP (24,000CPH)
Placement speed (4 heads + 4 theta) Opt. Cond.	0.15sec/CHIP (24,000CPH)
Placement speed (6 heads + 2 theta) Opt. Cond.	0.12sec/CHIP (30,000CPH)*2
Placement speed (4 heads + 1 theta) IPC9850	19,000CPH
Placement speed (4 heads + 4 theta) IPC9850	19,000CPH
Placement speed (6 heads + 2 theta) IPC9850	23,000CPH*2
Placement accuracy A (+3)	CHIP +/-0.040mm
Placement accuracy B (+3)	IC +/-0.025mm
Placement angle	+/-180 degrees
Z axis control	AC servo motor
Theta axis control	AC servo motor
Component height	Max 30mm*3 (Pre-placed components: max 25mm)
Applicable components	0402 to 120x90mm, BGA, CSP, connector, etc.
Component package	8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray
Drawback check	Vacuum check and vision check
Screen language	English, Chinese, Korean, Japanese
Board positioning	Board grip unit, front reference, auto conveyor width adjustment
Component types	Max 144 types (8mm tape), 36 lanes x 4
Transfer height	900 +/- 20mm
Machine dimensions, weight	L1750xD1750xH1420mm, Approx. 1450kg
Power	3-phase 200/208/220/240/380/400/416/440V +/-10% (Transformer included), 50/60Hz
Max consumption, capacity	1.1kW, 5.9kVA
Air pressure, consumption	0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R.

*1 Max. 1,450mm for 6-head configuration

*2 Optional item

*3 Board thickness + Component height = Max 30mm

Specifications and appearance are subject to change without prior notice
