  • Selective Wave Soldering Machine

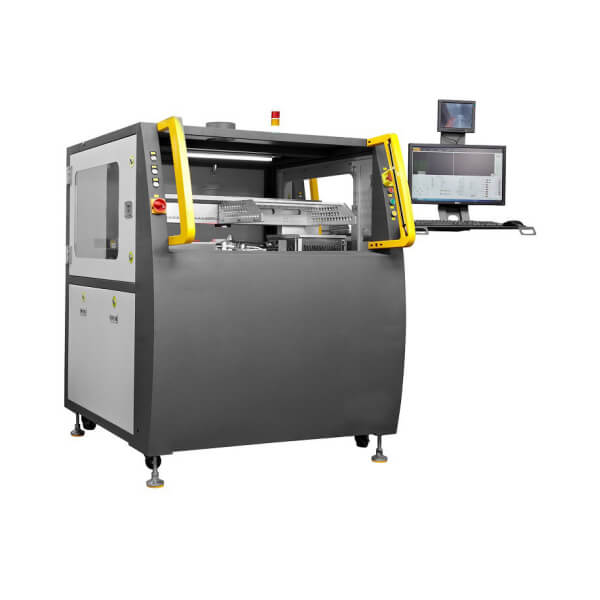

Selective Wave Soldering Machine

Selective Wave Soldering Machine

  • max solder temperature 350℃
  • solder pot capacity 15 KG
  • Net weight 380KG
  • dimension L1280mm X W1400mm X H1650mm
  • Product description: Selective Wave Soldering Machine, max solder temperature 350℃ solder pot capacity 15 KG dimension L1280mm X W1400mm X H1650mm Net weight 380KG
  • INQUIRY

Selective Wave Soldering Machine

Specifications:


selective wave soldering machine with automatic system and easy wave soldering process for led outdoor display
we not only have the standard wave soldering machine, but also have the selective wave solder machine which include online and offline!

Composition of1:Machine software system

A.With completely independent intellectual property rights of choosing welding software, combined with years of choosing welding using technology, based on the development of the WINDOWS software function, humanized operation with good traceability.


B.PCB pictures or GERBER file can be directly used for the path programming, the path to the starting point, the welding speed, idle motion speed, height of Z axis, such as wave height can be set on the computer.Domestic equipment industry the only can import the two formats of programming software.

C. after compiling the path of a piece of plate, can through the array function to path of makeup, at the same time on the choice of welding fixture some location of PCB.

D.the real-time display of welding process.Through the camera to the computer software, can take photo of the welding process, video recording and preservation.

E.the database function.Customers to use software increases with time, and constantly add solder and flux, the kinds of record is generated for each product, the more perfect.Record to welding different kinds products using flux, solder type, welding parameters, product parameters, etc.

F.Key parameters of the software completely monitoring, such as temperature, speed, air pressure, the nitrogen pressure and so on.

G.It can be upgraded to automatic wave height correction function.How many pieces of plate can be set interval correction wave height at a time.

H.It can be upgraded to take MARK point positioning and the frequency of use.

Composition of2:Motion platform system

A.motion platform design whole aluminum casting, lightweight design, and to improve the running speed of the platform rigidity.

B.Panasonic servo driver provided with Panasonic motor sports motivation, silver ball screw and linear guide for direction, positioning precision, low noise, smooth movement.

the mobile platform with dust-proof plate, prevent dirt drip into the ball screw.

Composition of 3:Spray part

A.the nozzle adopt Japanese origin atomization nozzle, atomization effect is good, and not easy blockage, suitable for various types of flux.Can be upgraded to choose German origin of jet nozzle, applies only to solid content less than 5% of flux.

B.flux filling and storage is adopted, and guarantee the spray pressure constant, the influence of flux is not helped by how much.Air pressure through the electronic gauge feedback to the computer monitor, in order to ensure the effect of the spray.

Composition of 4:Preheating part

A.All top and bottom with shoots the far infrared heating, the position is adjustable.

B.the heating rate can adjust the computer.

Composition of 5:Selective tin stove part

A.tin stove temperature, nitrogen gas temperature, wave height, wave correction, etc. Can be set in a computer

B.tin furnace tank for titanium alloy is made, no leakage.External type heating plate, uniform heat transfer.

C.tin stove adopts quick connector wire, tin stove replacement without rewiring.

D.nitrogen on-line heating devices, and ensure good wettability and reduce oxide tin stove.

F.tin stove with tin stove liquid level alarm.

G.the nitrogen pressure in through the electronic gauge feedback to the computer monitor, in order to ensure the effect of nitrogen protection.

Composition of 6:Transmission mechanism

A.spray and preheating section rail use chain transportation, guide rail, respectively before and after using independent stepper motor drives, transportation speed can be set.

B.tin stove on the stainless steel roller, guide adopts independent stepper motor drive, respectively before and after running smoothly, use for a long time without any abrasion.At the same time guarantee the tin furnace nozzle can achieve the most edge 3 mm PCB.

C.transport guide with splint, ensure accurate positioning.

Composition of 7:The machine shell

A.At the bottom of the whole steel structure, and substrate to increase the stability of the machine, reduce the vibration.

B.Machine industrial paint surface.
