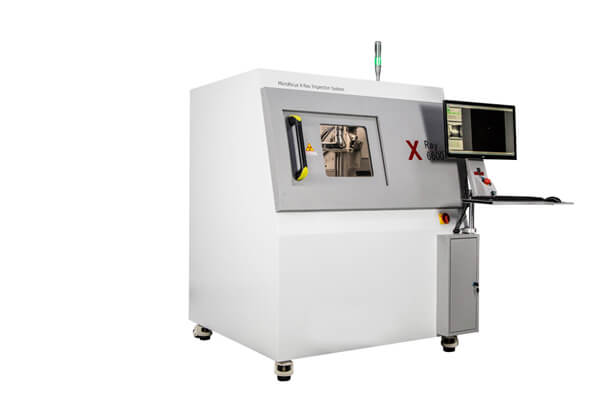

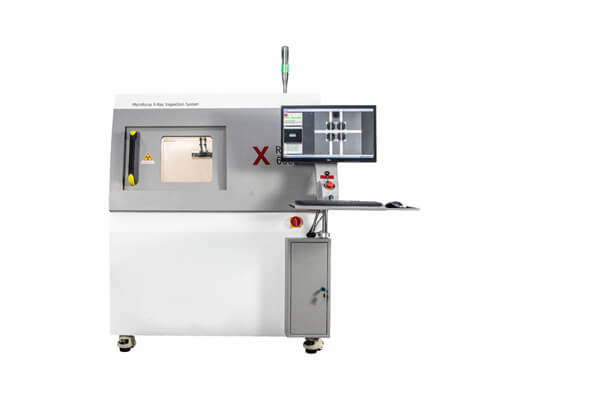

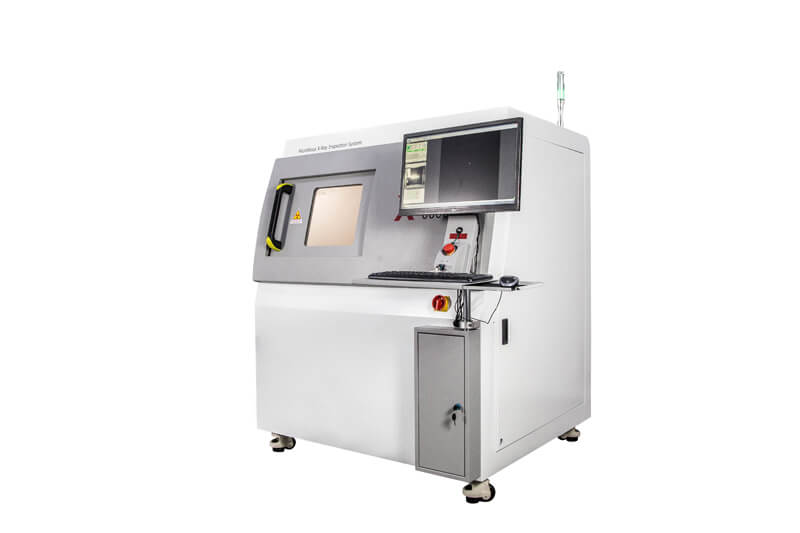

SMT PCB X Ray machine X-6600

SMT PCB X Ray machine X-6600

  • SMT X Ray machine
  • Stage size 640mm*540mm
  • Resolution 1176*1104
  • Dimension L:1360mm,W:1360mm,H:1650mm
  • Product description: SMT PCB X Ray machine X-6600, PCB quality inspection equipment, Net weight 1200kg Stage size 640mm*540mm, Dimension L:1360mm,W:1360mm,H:1650mm
  • INQUIRY

SMT PCB X Ray machine X-6600

Products description


SMT PCB X Ray machine X-6600

Application Field
1.Semiconductor package
2.Electronic connector module
3.Die Casting
4.Cars
5.Battery
6.LED
7.PCB'A
8.Other application


Mainly Functions

Functions

Advantages

X-ray tube and detector can be moved along the Z axis

can be detected the
Defects less than 2.5μm

Software setting voltage and current

Easy maintenance, with long life

Can control the speed in X-Y direction

Easy operationTraining time just need 15minutes

Editable detecting procedures

Suitable for the large batch detecting

Detectors maximum inclination 70 °

Semiautomatic to identify OK / NG  in Products

Large navigation window, mouse clicks can move the stage to a position that you need.

High accuracy detection

Can meet the size for kinds of samples

allows a unique perspective to detect sample

Technical Parameters

Items

Contents

Model

X-6600

X-RAY launching tube

Tube Type

Sealed type X-ray Tube

Maximum tube voltage

90kV

Maximum tube current

0.2mA

Focal size

5um

Magnification

Geometric magnification150X

System magnification1000X

Detector

Image Speed

30 fps

Resolution

1176*1104

Tilt angle

Detector60°Tilting

Cabinet Specifications

Stage size

640mm*540mm

Dimension

L1360mm,W1360mm,H1650mm

Net weight

1200kg

Input voltage

AC 110-220V +10%)(international general power supply

X-ray leakage amount

1 u Sv/h

Operation System

Windows 7

Total power

1.5Kw

Standard configuration

Items

Quantity

Unit

Remark

90KV-5umSealed type X ray Tube

1

PCS

Stage

1

PCS

Size640mm*540mm

Flat Panel Detector

1

PCS

High definition

Image processor CPU

1

PCS


Full-featured

LCD Monitor

1

PCS

24’’



Stage Control Parts

1.by the space bar to adjust stage speed: Slow, Constant and Fast

2.Keyboard control X, Y, Z axis motion and the inclined angle

3.User can detect the samples automatically by programmed

4.Large navigation window, the image is very clear, mouse clicks will move the stage to a position that you need.

NC programming

1. A simple mouse clicks will create a Testing procedures

2. The stage can be X, Y axis positioning; X-ray tube and the detector will be positioning in Z axis

3. Software setting voltage and current

4. Image setting: Brightness, contrast, automatic gain and exposure

5. user can set the program switch pause time

6. The anti-collision system can meet the maximum tilt and observe objects

7. Automatic analysis BGA diameter, Void ratio, size and roundness

Keywords:

SMT AOI Machine, Offline AOI Machine, Inline AOI Machine, SMT X Ray Machine, SMT SPI Machine, 3D SPI Machine, 3D AOI Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solutions !
B. life time Online Technical Support !
C. Free Online Installation Training Service !
