  • SMT Nozzle Cleaning Machine SME-24

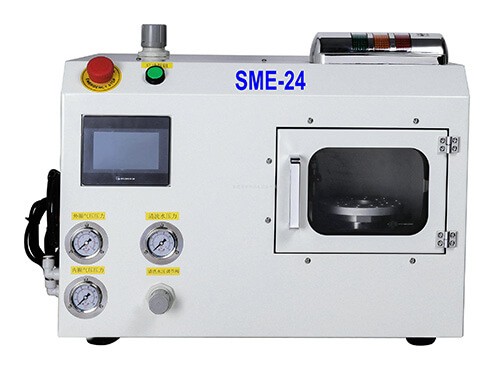

SMT Nozzle Cleaning Machine SME-24

SMT Nozzle Cleaning Machine SME-24

  • Clean liquid Purified water or DI water
  • Clean time 2~3min
  • Nozzle range Min 01005~Max inner diameter ¢2.0mm
  • Machine weight 40KG
  • Product description: SMT Nozzle Cleaning Machine SME-24, Clean liquid Purified water or DI water, Clean time 2~3min, Nozzle range Min 01005~Max inner diameter ¢2.0mm, Machine weight 40KG
  • INQUIRY

SMT Nozzle Cleaning Machine SME-24

Product Introduce:


SMT Nozzle Cleaning Machine SME-24

Machine Description:
By using latest special mechanism design, SME-24 use the hydrodynamic water fragmentation,producing very fine water mist,with the speed of sound (360m /s) to form a strong momentum jet to the nozzle and form a continuous energy field on the top of nozzle,crushing the dirt on the surface or internal of Nozzle ,during the cleaning process the cleaning liquid ( DI water) can be achieved automatic direct emissions, not need cleaning solvent at all.
Clean: 24 nozzles at one time. It can clean all types of nozzles by using different nozzle trays. Compressed air blow to make nozzles dray.
Check: Standard equipped nozzle inspector.
Machine Features:
1.Clean 24 nozzles in one time, quicker and more efficient
2.Replace traditional manual clean, avoid troubles caused by ultrasonic cleaner, reduce rejection rate.
3.To clean the dirt completely which ultrasonic cleaner can not deal with.
4.Cleaning result will not affect by the smaller and smaller nozzle.
5.Thoroughly clean 99% dirt on nozzle, extend the lifespan of nozzle.
6.Protect the coating surface of nozzle and its reflection panel.
7.Never use solvent, only environmentally friendly DI water is enough.
8.Easy operation.
9.Applicable to all kinds of Mounter nozzles, especially on corss, I-shape, odd-shape nozzles.
Machine Spec:

Item

SME-24 Spec

Air supply

0.5~0.7Mpa

Power supply

AC220V,1A

Clean liquid

Purified water or DI water

Clean time

2~3min

Dry time

1~3min

Jet pressure

≤0.55Mpa

Water consumption

≤150cc/hour

Nozzle range

Min 01005~Max inner diameter 2.0mm

Jig Spec

Small nozzle 24 holes /big nozzle 12 holes

Machine size

L665 x W555 x H475(mm)

Machine weight

40KG
