  • SMT NOZZLE Cleaner

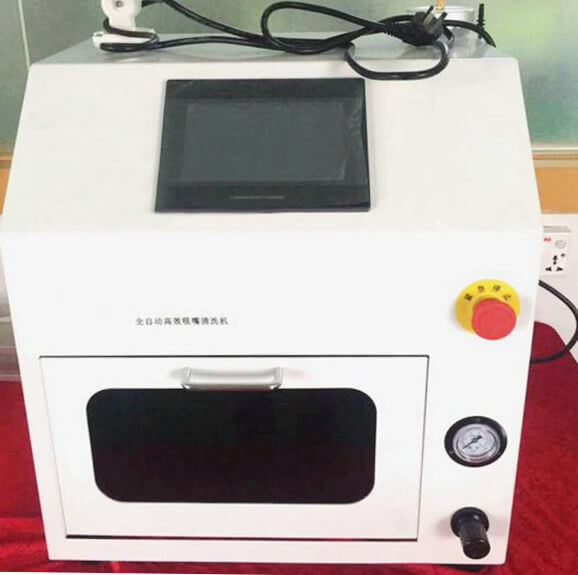

SMT NOZZLE Cleaner

SMT NOZZLE Cleaner

  • Size: (L*W*H) 500mm × 400mm× 550mm
  • Power supply 250W
  • Air source pressure 0.5 - 0.6MPa
  • Weight Approx. 40 KG
  • Product description: SMT NOZZLE Cleaner, Size: (L*W*H) 500mm × 400mm× 550mm Power(three phase two wire )2P2W,220VAC ,50/60Hz, 20A Power supply 250W Air source pressure 0.5 - 0.6MPa (Normal operation time) Weight Approx.
  • INQUIRY

SMT NOZZLE Cleaner

Specifications:

SMT NOZZLE Cleaner

Can cleaning nozzle of JUKI, YAMAHA, SAMSUNG, FUJI, PANASONIC,SEIMENS, HITACHI pick and place machine nozzles.
Description:
Main technical parameters

Size: (L*W*H) 500mm × 400mm× 550mm
Power(three phase two wire ) 2P2W,220VAC ,50/60Hz, 20A
Power supply 250W
Air source pressure 0.5 - 0.6MPa (Normal operation time)
Weight Approx. 40 KG
Parameters for electrical control:
Total power 200W
Controlling mode Touch screen+PLC
Air source Pure compressed air
Jet pressure ≤ 0.4 MPa
Air wastage Under 280NL/min
Liquid type Industrial purified water
Liquid consumption 300cc/hour
Liquid storage capacity 800cc
Admission pipe/Drainpipe ¢8 / ¢6
Specification of nozzle tray Default30 nozzles
Specification of cleaning nozzle 0201 - 2512 (inch)
Noise 35-60 dB

Please inform the feeder is for which brand mounter.
Please inform part no. for spare parts of feeder or machine.
