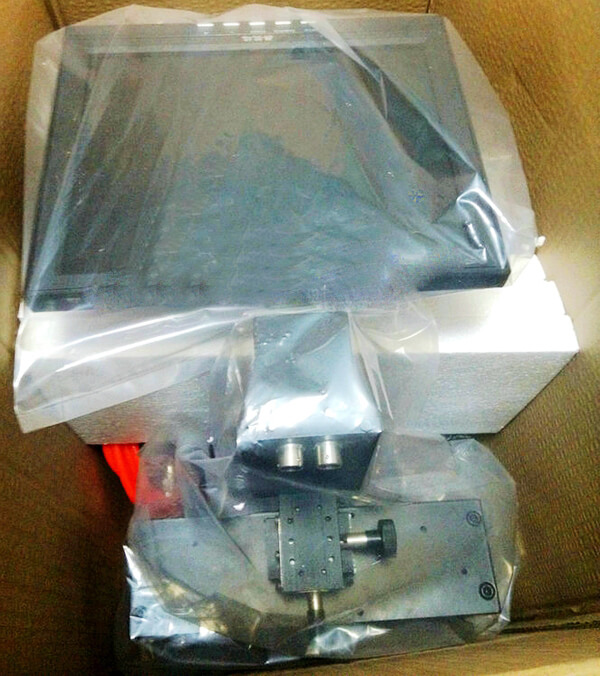

Panasonic CM402 SMT Feeder calibration jig

Specifications:


Product Information
Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
The lens part: using professional high-definition magnified 50 times CCD
Front of the lens: equipped with infrared LED light, can be more clearly detected suction position
Slider: X, Y, Z axes are used imported sliders, hardness, easy to wear, adjustable stroke 15MM
Display: 7 inch special LCD display, or black and white display, large and small customers optional
Part of the circuit: solenoid valve used Japan SMC components, buttons used  Fuji brand
Base: used 45 # steel imported carved from, and other heat-treated to enhance its hardness, ensure its accuracy
Calibrator base:  using imported 16MM thick aluminum processing

Display CCD Monitor
Correction Inner cross line
Master Jig Depend on feeder model
Operation Adjustable speed control
Air pressure 5 Kg/cm2
Power AC 110V / 220V
Weight 35Kg

CM402/602/NPM

CM402/602 8mm 0201

N610031080AA

CM402/602 8mm with sensor

KXFW1KS5A00

CM402/602 8mm  without sensor

KXFW1KSBA00

CM402/602 12/16mm with sensor

KXFW1KS6A00

CM402/602 12/16mm without sensor

KXFW1KSCA00

CM402/602 24/32mm with sensor

KXFW1KS7A00

CM402/602 24/32mm without sensor

KXFW1KSDA00

CM402/602 24/32mm Deep groove

KXFW1LOYA00

CM402/602 44/56mm with sensor

KXFW1KS8A00

CM402/602 44/56mm without sensor

KXFW1KSEA00

CM402/602 44/56mm Deep groove

KXFW1LOTA00

CM402/602 72mm with sensor

KXFW1KS9A00

CM402/602 72mm without sensor

KXFW1KSFA00

CM402/602 72mm Deep groove

KXFW1LOZA00

CM402/602 88mm with sensor

KXFW1KS10A00

CM402/602 88mm without sensor

KXFW1KSEA00

CM402/602 stick feeder

KXFW1KSRA00


BM Feeder

BM

8W*2P

10896BF101

Double

BM

8W*2P

N610014231AA

Double

BM

8W*4P

10896BF106

Double

BM

8W*4P

N610016060AA

Double

MSF

8W*2P

10896BF061

Double

MSF

8W*4P

10896BF066

Double

BM

8W*2P

10896BF074

Single

BM

8W*4P

10896BF071

Single

BM

12MM

FAE1200MA300

BM

16MM

FAE1600MA300

BM

24MM

FAE2400MA300

BM

32MM

FAE3200MA300

BM

44MM

FAE4400MA300

BM

56MM

FAE5600MA300
