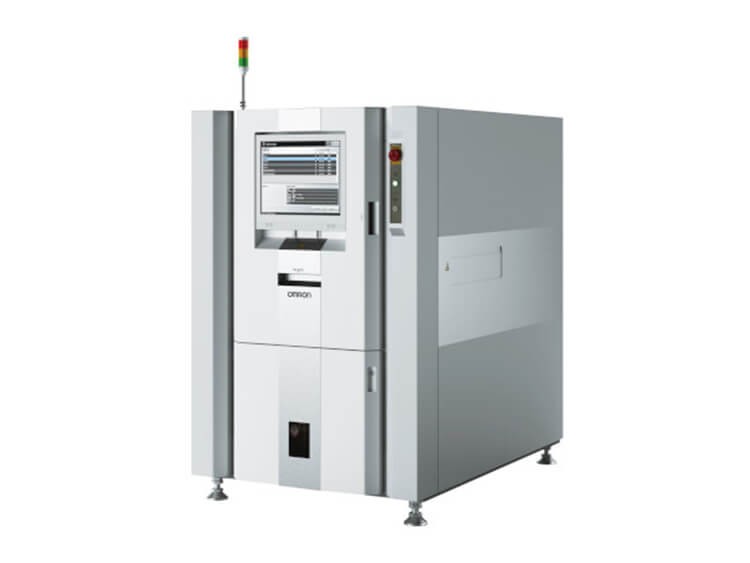

Omron 3D AOI VT-S730-H

FOV 30.00×30.72mm
max PCB:510(W)×460(D) mm
Weight Approx. 800kg
Dimensions 1100(W)×1470(D)×1500(H) mm
Product description: Omron 3D AOI VT-S730-H SMT Inspection Machine, FOV 30.00×30.72mm, max PCB:510(W)×460(D) mm, Weight Approx. 800kg, Dimensions 1100(W)×1470(D)×1500(H) mm
INQUIRY

Omron 3D AOI VT-S730-H

Specifications：

SIndustries Highest Capability
Full 3D-AOI System
Built Upon a History of Innovation and track record of High-Quality Solutions, the VT-S730 is the Industry’s fastest Real 3D-AOI machine using Omron’s unique 3D-Solder Joint Inspection (3D-SJI) technology for Best Inspection Capabilities.

VT-S730 series Post Reflow inspection machines have been widely adopted in production lines where the highest quality control is required, such as the Automotive Industry. VT-S730 Series uses a combination of Phase Shift and Omron’s unique color image processing technology called "color highlight ™ 3D shape reconstruction technology" providing the highest accuracy in Solder Joint Inspection called ‘SJI’.

Features
features vt-s730-H aoi
Top View 4Mpixel/12Mpixel Camera with Telecentric Lens.
4x Oblique-Angle Inspection Cameras
Latest 3D Programmable DLP Projectors (25mm max Height Inspection).
Omron’s Unique Color-Highlight Illumination Technology.

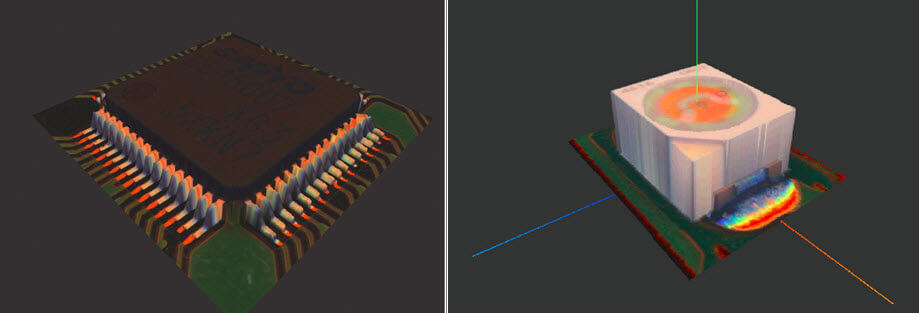

Real 3D Image Technology for Component and High-Quality Solder Joint Inspection.
Real-time Interactive 3D data feedback to the Programmer.
View and edit samples of all parts on the board simultaneously (in real-time) without interrupting Production.
Process histograms are created automatically for all inspection tests and components
AI self-optimization tools can perform automated inspection logic and criteria changes.
Real defect images can be stored in a Central library and used to improve the tuning process.
Full 3D Data Processing and realization of Industrial 4.0 Smart Factory Solution.
Industrial 4.0 connectivity with The Hermes Standard for Full M2M Connectivity.
Omron Q-upNavi: Combine SPI, AOI and AXI Inspection Result Data for True Root-Cause Process Analysis for Process Improvement.
Omron Q-upAuto: Advanced Manufacturing Analysis Combining Q-upNavi ‘Inspection Result Data’, with ‘Manufacturing Process Data’ for High Level Process Improvement.
VT-730 is the latest 3D-AOI technology on the market, providing the Highest-Quality Solution for tomorrows production environments.

Model		S730	S730-H
Dimensions		1100(W)×1470(D)×1500(H) mm
Weight		Approx. 800kg
Power supply	Voltage	200 - 240VAC (single phase), voltage fluctuation range ±10%
	Normal rated power	2.8kVA	2.4kVA
Line height		900±20mm
Air supply pressure		0.3 - 0.6MPa
Operating temperature range		10 - 35°C
Operating humidity range		35 - 80%RH (Non-condensing)
Image signal input block	Imaging system	4M pixel camera	12M pixel camera
	Inspection principle	3D reconstruction through color highlight and phase shift technology
	Image resolution	15μm
	FOV	30.00×30.72mm	61.44×46.08mm
Supported PCB size		50(W)×50(D) - 510(W)×460(D) mm
Thickness		0.4 - 4mm
Clearance		Above: 40mm; Below: 40mm
Height measurement range		25mm
Inspection item		Component height, lift, tilt, missing/wrong component, wrong polarity, flipped component, OCR inspection, 2D code, component offset (X/Y/rotation), fillet (height/length, end joint width, wetting angle, side joint length), exposed land, foreign material, land error, lead offset, lead posture, lead presence, solder ball, solder bridge
