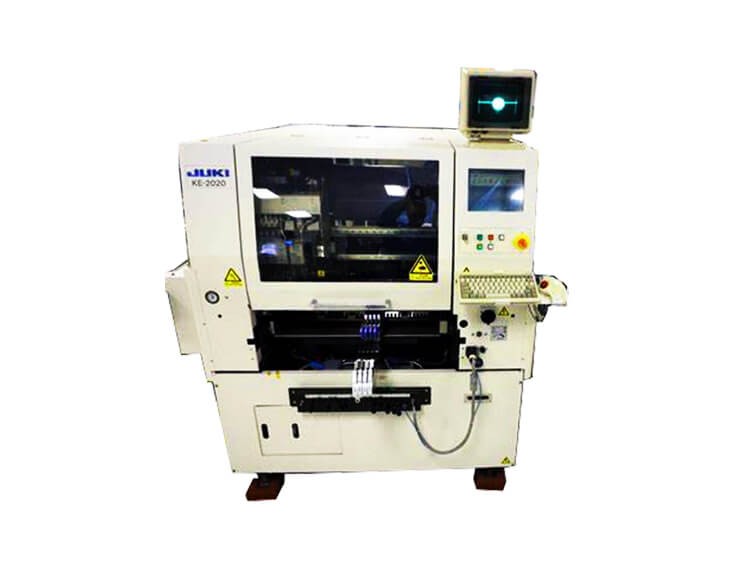

JUKI KE2020 Pick and Place Machine
The ultra-flexible KE-2020 can place a wide range of components from 0603 and ICs, to odd-form, all at a high rate of speed.
11,100CPH chip (laser centering/effective tact)
1,300CPH: IC (vision centering/effective tact),
One multi-nozzle laser head (4 nozzles) plus one high resolution head (1 nozzle)
from 0603 mm0201mm to 74mm square components or 50×150mm
0402 (01005) option factory installed.
Vision centering system (featuring bottom, side, and back lighting, ball recognition and split recognition)
1 Actual throughput may vary.
2 Please download brochure for details.
Board size M size(330×250mm)
Component size Laser recognition 0603 (0201)20mm or 26.5×11mm
(0402 (01005) optional)*5
Vision recognition 1.0×0.5mm*2mm20mm or 26.5×11mm
Placement speed Chip 11,000CPH*2
Placement accuracy Laser recognition ±0.05mm
Vision recognition ±0.04mm
Feeder inputs Max. 80 on 8mm T/F*4Keywords:
