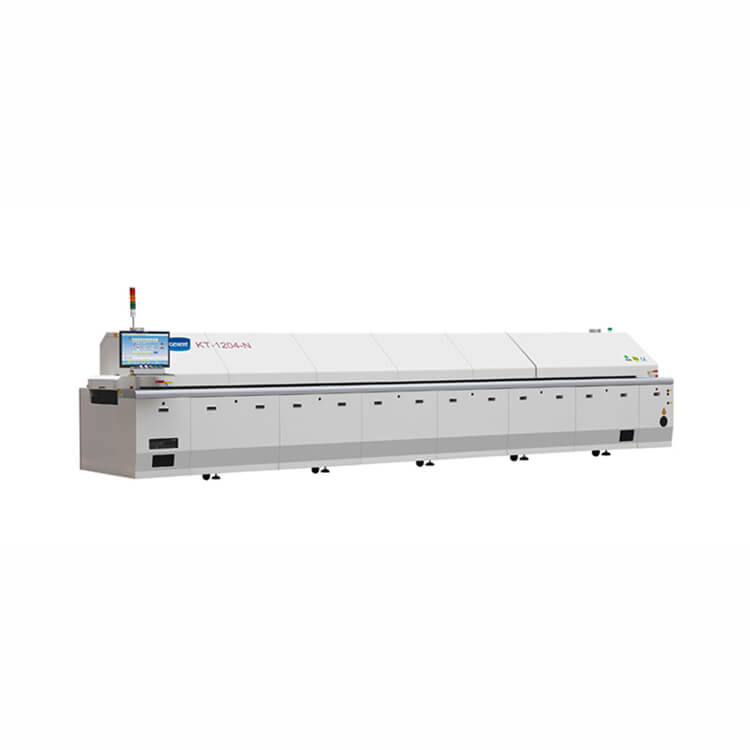

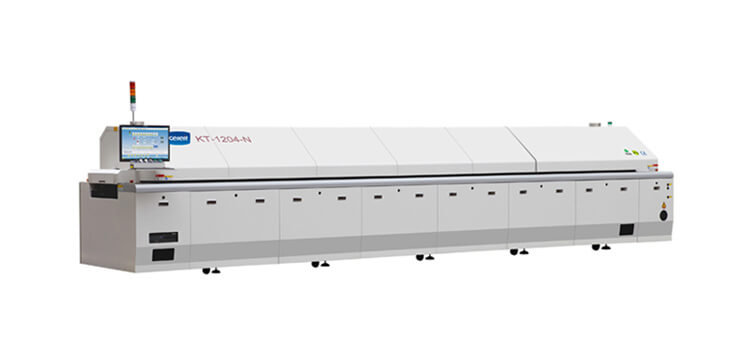

JT Reflow Oven KT series

Specifications:


JT Reflow Oven KT series:KTD-0804/KTD-0804-N, KTD-1004/KTD-1004-N, KTD-1204/KTD-1204-N

High speed, high efficiency, conveyor speed can run 160cm/min. in normal soldering process.
Prevent deformation design as well as two-phase rail composition.
New two level flux reclaim system with multi-zones collecting.
Whole tunnel nitrogen protection and oxygen concentration monitoring, the 02 ppm can be checked automatically or manually.
New enhanced 4 cooling zones which are able to cool down the PCBA to 50℃ even in large volume lead free process.

Model

KTD-0804/KTD-0804-N

KTD-1004/KTD-1004-N

KTD-1204/KTD-1204-N

GENERAL

Outside Dimension

5900X1725X1630mm

6622X1725X1630mm

7313X1725X1630mm

Standard Color

Computer Grey

Computer Grey

Computer Grey

Weight

Approx.3150KG/3300KG

Approx.3650KG/3800KG

Approx.4150KG/4300KG

Electric Supply Required

3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)

Electric Power

71KW/74KW

89KW/92KW

101KW/105KW

Power For Warm Up

33KW/35KW

35KW/37KW

40KW/42KW

Power Consumption

9KW/9.5KW

10KW/11KW

11.5KW/13KW

Components Clearance

PCB Top:30mm Bottom:25mm

Model

KTS-0804/KTS-0804-N

KTS-1004/KTS-1004-N

KTS-1204/KTS-1204-N

GENERAL

Outside Dimension

5900X1495X1630mm

6622X1495X1630mm

7313X1495X1630mm

Standard Color

Computer Grey

Computer Grey

Computer Grey

Weight

Approx.2800KG/2950KG

Approx.3250KG/3400KG

Approx.3700KG/3850KG

Electric Supply Required

3 Phase,380V 50/60HZ(Optional:3 Phase,220V 50/60HZ)

Electrical Power

65KW/69KW

81KW/85KW

93KW/97KW

Power For Warm Up

30KW/32KW

32KW/34KW

37KW/39KW

Power Consumption

7.5KW/8.5KW

8.5KW/9.5KW

10.5KW/11.5KW

Components Clearance

PCB Top:30mm Bottom:25mm

Model

KTS-0804L/KTS-0804L-N

KTS-1004L/KTS-1004L-N

KTS-1204L/KTS-1204L-N

GENERAL

Outside Dimension

5900X1725X1630mm

6622X1725X1630mm

7313X1725X1630mm

Standard Color

Computer Grey

Computer Grey

Computer Grey

Weight

Approx.3100KG/3250KG

Approx.3600KG/3750KG

Approx.4100KG/4250KG

Electric Supply Required

3 Phase,380V Phase,220V 50/60H  (Optional:3 50/60HZ)

Electric Power

71KW/74KW

89KW/92KW

101KW/105KW

Power For Warm Up

32KW/34KW

34KW/36KW

39KW/41KW

Power Consumption

8KW/9KW

9.5KW/10KW

11KW/12KW

Components Clearance

PCB Top:30mm Bottom:25mm




Keywords:

SMT Reflow Oven, Lead free SMT Reflow Oven, Reflow Oven Manufacturer, LED Reflow Oven, Nitrogen Reflow Oven, Dual Lane Reflow Oven, China Reflow Oven.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven Manufacturer, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT Inspection Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: [email protected]


FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
