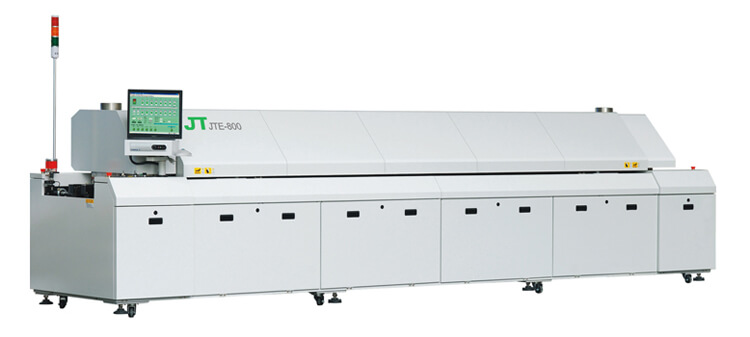

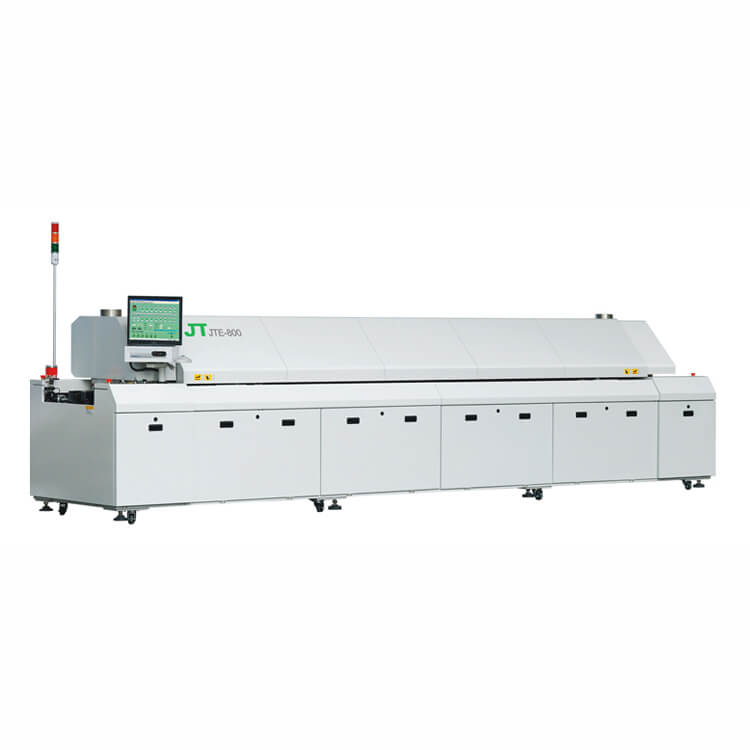

JT Reflow Oven 8 zones JTE-800
Introduction:
JT Reflow Oven JTE-800
Totally meet various requirements for lead free processing.
Standard 8 couples of up and down zones with patented air management system to make hot air convection more efficient and faster thermal compensation.
PLC+PID closed loop control to achieve high precise temperature control and repeatable profiles.
Dual temperature sensors and dual safety control system shall cut off the power while abnormal case occurred.
The various alarm function: Over temperature alarm, abnormal speed alarm and Board dropped alarm.
Parameters:
|
Model
|
JTE-800
|
|
Dimension
|
5310X1353X1490
|
|
No. of Heating Zone
|
Top/Bottom 8
|
|
Length of heating zone
|
3121mm
|
|
No. of cooling zone
|
上2
|
|
Air exhaust requirement
|
10m³/minx2
|
|
Warming time
|
About.30 minute
|
|
Temperature control accuracy
|
±1.0℃
|
|
Temperature deviation on PCB
|
±1.5℃
|
|
PCB Max. width
|
400mm
|
|
Component Height
|
PCB Top/Bottom25mm
|
|
Conveyor direction
|
L→R (Option:R→L)
|
|
Conveyor type
|
Chain+ Mesh
|
|
Conveyor speed
|
300~2000mm/min
|
|
Cooling type
|
Forced air cooling
|
Keywords:
SMT Reflow Oven, Nitrogen Reflow Oven, Dual Lane Reflow Oven, Vertical Reflow Oven, Vacuum SMT Reflow Oven, Lead free SMT Reflow Oven, Reflow Oven Manufacturer, LED Reflow Oven, China Reflow Oven.
Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including
SMT Reflow Oven,
Wave Soldering Machine,
Pick and Place Machine,
SMT Stencil Printer,
SMT AOI SPI Machine,
SMT Reflow Oven,
SMT Peripheral Equipment,
SMT Assembly line,
SMT Spare Parts
etc any kind SMT machines you may need, please contact us for more information:
wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com |
 |
 |
 |
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. SMT Assembly Line Total Solutions !
B. life time Online Technical Support !
C. Free Online Installation Training Service ! |
 |
