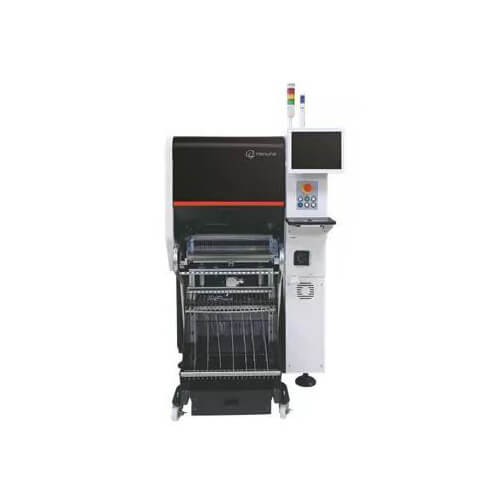

Hanwha HM520 Chip Mounter
Hanwha HM520 modular Chip mounter, it's Hanwha's first modular chip mounter, 890MM length.
Power AC200 / 208/220/240/380
890MM length ultra-small Chip mounter
60,000 CPH (Piano Head)
LED products: 72,000 CPH (Rotary)
Automatic detection of pick and placing problem.
Automatically replenishing suction/mounting position and height deviation
Preventing LED defects caused by turning
PCB: Max (L) 750x (W) 580mm (optional)
The Hanwha HM520 Chip mounter is a high-speed Modular Chip Mounter equipped with Rotary Head.
high-performance newer flying camera placement machine that delivers world-class top speeds of 80,000 CPH .
03015Chip ~ 14mm can be basically corresponding, and through the application of high-speed.
High-precision electric feeder, improve the actual productivity and placement quality.

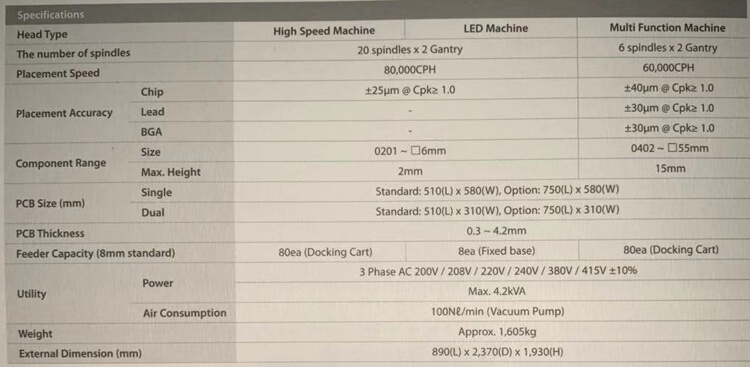

Hanwha HM520 Chip Mounter parameters
Number of shafts: 10 shafts * 2 cantilever
Mounting Speed: 80000CPH (Rotary Head Conditions)
Mounting accuracy: 1μm
Component Size: 03015, BGA, CSP (Ball Pitch 0.03mm)
Electrically Driven High Speed and High Accuracy.
20 Spindle Head:
Design to small and light head So that can use Fix Camera to identify 20 Spindle one times.
Fix Camera High clear High Pixel:
Use high clear(5M) camera, Can pick and place Mini LED chip, Mobile phone micro chip(0402,0603) in high speed.
New design 8mm HM feeder, successly shorted 24% pick and place time.
Optimized LED production:
By Adapting Rotary head, reached 74000CPH real production speed with a few HM feeders.
Enlarged Erea Productivity:
Enlarged PCB production size(L750mm), Shrinked equipment length(W0.89M), Highly enlarged unit erea's productivity.(40% more than Decan Series Pick and Place Machine).
Reduce Cycletime by share Badmark information:
Share badmark informations identified by first equipment with other equipment in the smt assembly line, Reduced cycletime by share these badmark informations.
Side View Camera, Prevent missing components:
Check nozzle status and components status duiring production process, checking before place component on PCB and after place component on PCB to prevent component miss placing problem. And check the component height in real time and automatic correct component position on PCB to prevent bad component placing.
Automatic correct picking and placing position:
Use the COR data from Calibration result to correct pick and place position to prevent placing mistake.
Can pick Emboss components without teaching by use Height Sensor, Automatic correct placing position tollerence caused by curved PCB.
LED components invert checking function:
Checking component invert or not by Vision Camera to prevent bad component placing on PCB.
