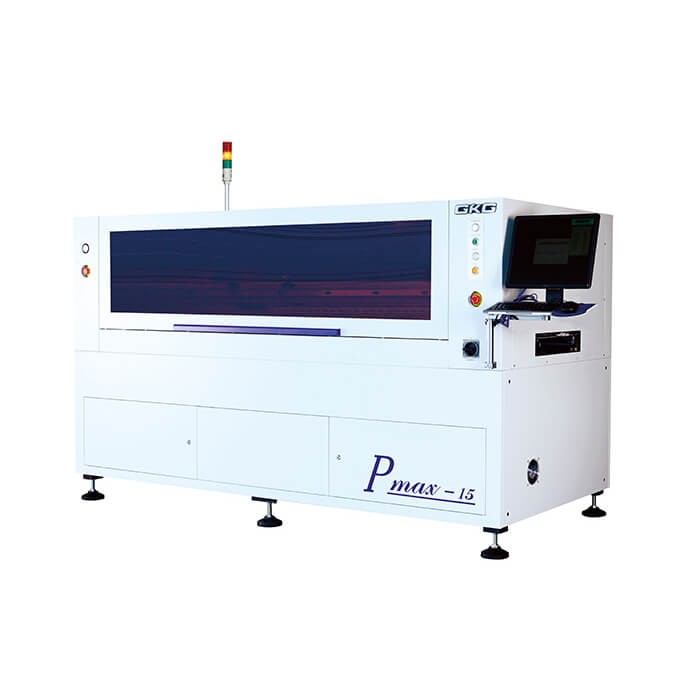

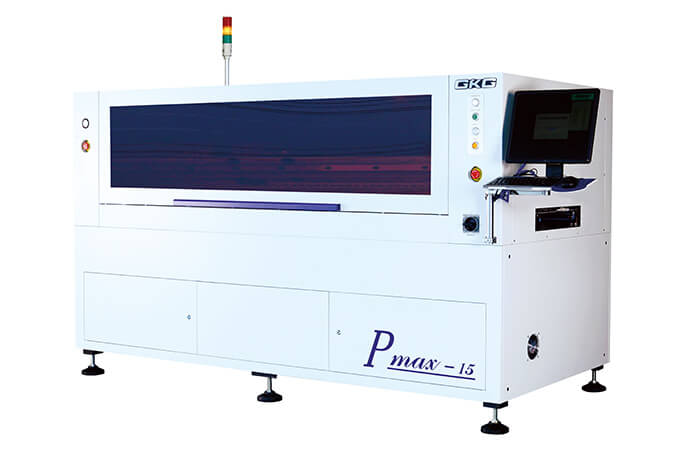

GKG PMAX 15 SMT Stencil Printer

Max PCB:1500*350mm
Voltage: 220V
Voltage: 220V
size: 2570*1210*1509mm
Product description: GKG PMAX 15 SMT Stencil Printer, Max PCB:1500*350mm, Voltage: 220V, Weight:1800Kg, size: 2570*1210*1509mm
INQUIRY

GKG PMAX 15 SMT Stencil Printer

Specifications:

GKG PMAX 15 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.

Item	Parameter
Repeat Position Accuracy	±0.01mm(Test data and method are available)
Printing Accuracy	±0.025mm(Test data and method are available)
Printing Speed / Cycle Time	<10s (Exclude Printing & Cleaning)
Products Changeover	<5Min
Screen Stencil Size/Min-Max	720mm X300mm-1800mm X750mm
Screen Stencil Size/Thickness	20mm ~ 40mm
PCB Size/Min-Max/Thickness	80X50mm-1500X350mm/0.8~6mm
PCB Warpage Ratio	＜1%（Based on diagonal length）
Bottom of Board Size	15mm（Standard configuration）, 25mm
Edge of Board Size	3mm
Conveyor Height	900±40mm
Conveyor Direction	Left-Right; Right-Left; Left-Left; Right-Right
Conveyor Speed	100-1500mm/sec Programmable control
PCB Support System PCB Clamping System	Magnetic pin/Side support block/Flexible automatic pin（optional）
PCB Support System PCB Clamping System	Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting
Print head	Two indepandent Motorised printheads
Squeegee Speed	6~300mm/sec
Squeegee Pressure	0-10kg software control（closed-loop pressure feedback）, pressure value visible
Squeegee Angle	60°(Standard )/55°/45°
Squeegee Type	Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.
Steel Mesh Separation Speed	0.1~20mm/sec Programmable Control
Cleaning Method	Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods）
Table Adjustment Range	X/Y:±10mm;θ:±2°
Type of Fiducial Point	Standard geometry shape of fiducial point, bonding pad / Stencil hole
Camera System	Single digital camera for upward/downward vision system
Air Pressure	4~6Kg/cm2
Air Consumption	Approx 0.07m3 /min
Control Method	PC Control
Power Supply	AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions/Weight	Depends on exactly model
Operation Temperature	-20°C ~ +45°C
Operation Humidity	30%~60%
