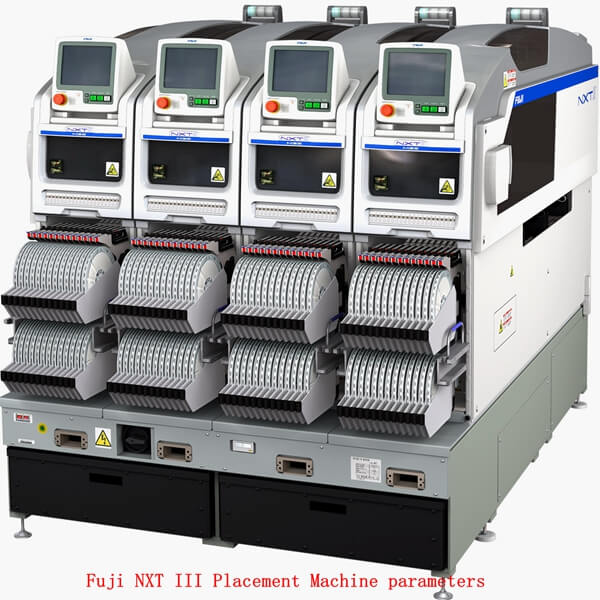

Fuji NXT III Pick and Place Machine
Fuji NXT-M3 Mounter Specifications:
(Single handling track)
H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200
H12S / H08 / H04: 0.05mm (3sigma) cpk≥1.00
H12S: 0402 ~ 7.5x7.5mm high: MAX: 3.0mm
H08: 0402 ~ 12x12mm high: MAX: 6.5mm
H04: 1608 ~ 38x38mm high: MAX: 13mm
H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) High: MAX: 25.4mm
G04: 0402 ~ 15.0mmx15.0mm high: MAX 6.5mm
MAX: 20 kinds / module (8mm tape conversion)
3P / 200V / 10KVA
0.5 MPa (5 kgf / cm2), 10 NI / min.
2M II Base: 740 (L) x 1934 (W)
4M II Base: 1390 (L) x 1934 (W)
H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)
By loading the newly developed H24G head on the NXT III, 008004″ (0.25 x 0.125 mm)
components can be supported without any change to the specifications of the machine
(speed: 35,000 cph, accuracy: ±25 μm). The Intelligent Part Sensor (IPS), which
checks the orientation of parts on the nozzle and ensures that the part
does not remain on the nozzle after placement, is standard on the H24G placement head.
As part sizes get increasingly smaller and more delicate, lower impact forces during
placement are required. The 008004″ (0.25 x 0.125 mm) part nozzles developed
for the H24G head achieve an impact force of no greater than 0.5 N without any
reduction in operation speed.
Orders for the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles will start to be
taken from January 2015.
Fuji is planning to demonstrate the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles
Please drop by the booth to see some 008004″ (0.25 x 0.125 mm)
components being placed at high speed.Keywords:
