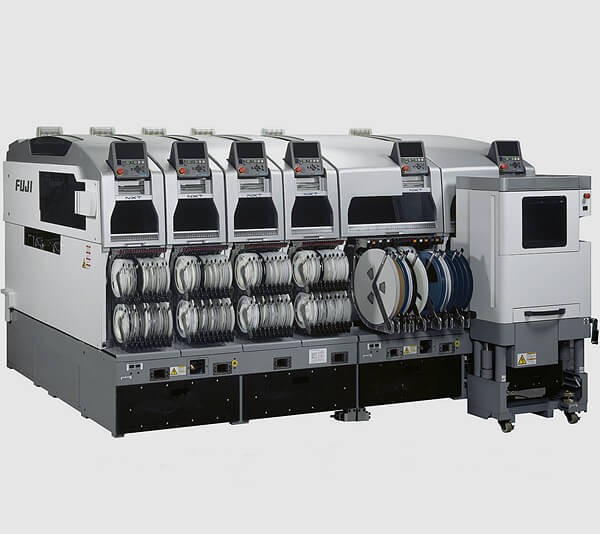

Fuji NXT I Pick and Place Machine

H08: 0402 ~ 12x12mm
Patch speed: H12HS: 22,500;
4M II Base: 1390 (L) x 1934 (W)

Fuji NXT I Pick and Place Machine

Specifications:

Modular design that supports high productivity and flexible production modes.

PCB Size: Min .: 48mmx48mm Max: 510mmx534mm (Double Track)

Patch speed: H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200

Patch accuracy: H12S / H08 / H04: 0.05mm (3sigma) cpk ≥ 1.00

Patch range: H12S: 0402 ~ 7.5x7.5mm high: MAX: 3.0mm

H08: 0402 ~ 12x12mm high: MAX: 6.5mm

H04: 1608 ~ 38x38mm high: MAX: 13mm

H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) High: MAX: 25.4mm

G04: 0402 ~ 15.0mmx15.0mm high: MAX 6.5mm

Mounted rack: MAX: 20 species / module (8mm tape conversion)

Use power: 3P / 200V / 10KVA

Air flow rate: 0.5 MPa (5 kgf / cm2), 10 NI / min.

LED Mounter

Dimensions: 2M II Base: 740 (L) x 1934 (W)

4M II Base: 1390 (L) x 1934 (W)

H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)

Machine weight: 1,350kg

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments , JUKI products, JUKI Pick and Place Machine Machine, JUKI SMT Stencil Printer, JUKI Assembly Line, JUKI SMT Reflow Oven; JUKI SMT Inspection Machine; JUKI SMT Spare Parts; SMT Equipment; JUKI SMT Peripheral Equipment; any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: tommy@flason-smt.com

1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
