FUJI H08 5.0 AA20E00  Nozzle

Products description

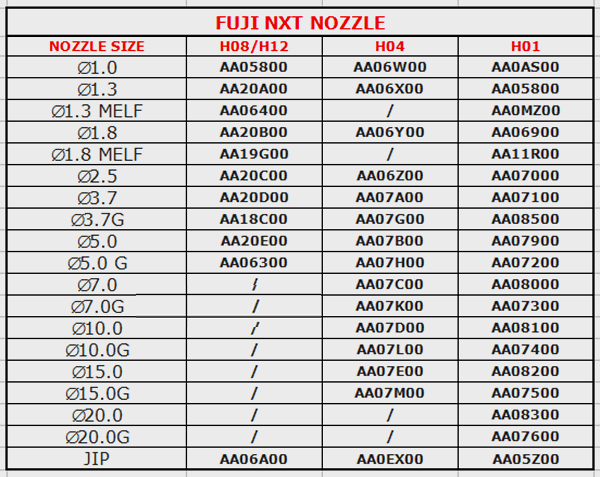

FUJI NXT NOZZLES --H08 head
Part Number Description
AA05600 H08 Yellow ø0.45/0.3
AA05700 H08 Blue ø0.7/0.5
AA05800 H08 Pink ø1.0
AA20A00 H08 Green ø1.3
AA06400 H08 Orange ø1.3 Melf
AA20B00 H08 Aqua ø1.8
AA19G00 H08 Orange ø1.8 Melf
AA20C00 H08 Purple ø2.5
AA06504 H08 Orange ø2.5 Melf
AA0WT00 H08 Purple ø2.5G
AA20D00 H08 Yellow-Green ø3.7
AA18C00 H08 Yellow-Green ø3.7G
AA20E00 H08 Medium purple ø5.0
AA06300 H08 Red ø5.0G

FUJI NXT NOZZLES --H04 head
Part Number Description
AA06W00 H04 Pink ø1.0
AA06X00 H04 Green ø1.3
AA06Y00 H04 Aqua ø1.8
AA22Z14 H04 Orange ø1.8 Melf
AA06Z00 H04 Purple ø2.5
AA07F00 H04 Purple ø2.5G
AA07A00 H04 Yellow-green ø3.7
AA07G00 H04 Yellow-green ø3.7G
AA07B00 H04 Medium purple ø5.0
AA07H00 H04 Red ø5.0G
AA07C00 H04 Medium purple ø7.0
AA07K00 H04 Dark red ø7.0G
AA07D00 H04 Medium purple ø10.0
AA07L00 H04 Navy ø10.0G
AA07E00 H04 Medium purple ø15.0
AA07M00 H04 White ø15.0G

FUJI NXT NOZZLES --H01 head

Part Number Description
AA0AS00 H01 Pink ø1.0
AA05800 H01 Green ø1.3
AA0MZ00 H01 Orange ø1.3 Melf
AA06900 H01 Aqua ø1.8
AA11R00 H01 Orange ø1.8 Melf
AA07000 H01 Purple ø2.5
AA08400 H01 Purple ø2.5G
AA07100 H01 Yellow-green ø3.7
AA08500 H01 Yellow-green ø3.7G
AA07900 H01 Medium purple ø5.0
AA07200 H01 Red ø5.0G
AA08000 H01 Medium purple ø7.0
AA07300 H01 Dark red ø7.0G
AA08100 H01 Medium purple ø10.0
AA07400 H01 Navy ø10.0G
AA08200 H01 Medium purple ø15.0

Fuji NXT H08M, H08MQ Nozzles (Fuji AIMEX H08M, H08MQ Nozzles)

FUJI NXT NOZZLES --H08M head
AA07500 H01 White ø15.0G

Part Number Description
AA8LS00 H08M Yellow ø0.4
AA8DX00 H08M Blue ø0.7
AA8LT00 H08M Pink ø1.0
AA8DY00 H08M Green ø1.3
AA8MN00 H08M Orang ø1.3 Melf
AA8LW00 H08M Aqua ø1.8
AA8MR00 H08M Orange ø1.8 Melf
AA8LX00 H08M Purple ø2.5
AA8MS00 H08M Orange ø2.5 Melf
AA8ME00 H08M Purple ø2.5G
AA8LY00 H08M Yellow-green ø3.7
AA8MF00 H08M Yellow-green ø3.7G
AA8LZ00 H08M Medium purple ø5.0
AA8MG00 H08M Red ø5.0G
AA8MA00 H08M Medium purple ø7.0
AA8MH00 H08M Dark red ø7.0G
AA8MB00 H08M Medium purple ø10.0
AA8MK00 H08M Navy ø10.0G
AA8MC00 H08M Medium purple ø15.0
AA8ML00 H08M White ø15.0G
AA8MD00 H08M Medium purple ø20.0
AA8MD00 H08M Gray ø20.0G

AA07F00 Nozzle 2.5 with rubber pad
AA00G00 Nozzle 3.7 with rubber pad
AA00H00 Nozzle 5.0 with rubber pad
AA07K00 Nozzle 7.0 with rubber pad
AA07L00 Nozzle 10.0 with rubber pad
AA07M00 Nozzle 15.0 with rubber pad

AA1AT00 Nozzle 0.3
AA05600 Nozzle 0.4
AA05700 Nozzle 0.7
AA05800 Nozzle 1.0
AA20A00 Nozzle 1.3
AA20B00 Nozzle 1.8
AA20C01 Nozzle 2.5
AA0WT00 Nozzle 2.5G
AA20D00 Nozzle 3.7
AA20E00 Nozzle 5.0

AA06400 Nozzle 1.3m MELF
AA19G00 Nozzle 1.8m MELF
AA18C00 Nozzle 3.7G with rubber pad
AA06300 Nozzle 5.0G with rubber pad

CP2-CP3 Nozzle
Part Number(OEM) Description
AGPH - 9560 CP3/S PICK UP NOZZLE Ø 0.7
AGPH - 9410 CP3/S PICK UP NOZZLE Ø 1.0
AGPH - 9130 CP3/S PICK UP NOZZLE Ø 1.3
AGPH - 9050 CP3/S PICK UP NOZZLE Ø 1.3 (MELF)
AGPH - 9470 CP3/L PICK UP NOZZLE Ø 1.3
AGPH - 9060 CP3/L PICK UP NOZZLE Ø 2.5
AGPH - 9430 CP3/L PICK UP NOZZLE Ø 3.4
AGPH - 9460 CP3/L PICK UP NOZZLE Ø 1.3 (MELF)

FUJI CP3 DARKPOINT PICK UP NOZZLE
Part Number(OEM) Description
AGPH - 9570 CP3/DPT-S DARK POINT Ø 0.7/ Ø 11.5
AGPH - 9550 CP3/DPT-S DARK POINT Ø 1.0/ Ø 11.5
AGPH - 9190 CP3/DPT-S DARK POINT Ø 1.3/ Ø 11.5
AGPH - 9200 CP3/DPT-S DARK POINT Ø 2.5/ Ø 16.5
AGPH - 9440 CP3/DPT-S DARK POINT Ø 3.4/ Ø 16.5

CP6 NOZZLE
Part Number(OEM) Description
AWPH - 9510 CP6/S PICK UP NOZZLE Ø 0.7
AWPH - 9520 CP6/S PICK UP NOZZLE Ø 1.0
AWPH - 9530 CP6/S PICK UP NOZZLE Ø 1.3
AWPH - 9550 CP6/S PICK UP NOZZLE Ø 1.8
AWPH - 9541 CP6/S PICK UP NOZZLE Ø 1.3 (MELF)
AWPH - 9580 CP6/L PICK UP NOZZLE Ø 2.5
AWPH - 9600 CP6/L PICK UP NOZZLE Ø 3.7
AWPH - 9591 CP6/L PICK UP NOZZLE Ø 2.5 (MELF)
AWPH - 9560 CP6/M PICK UP NOZZLE Ø 2.5

CP7 NOZZLE
Part Number(OEM) Description
ADCPH - 9510 CP7/S NOZZLE Ø0.4 (8mm Diameter)
ADCPH - 9520 CP7/S NOZZLE Ø0.7 (8mm Diameter)
ADCPH - 9530 CP7/S NOZZLE Ø1.0 (8mm Diameter)
ADCPH - 9540 CP7/S NOZZLE Ø1.3 (8mm Diameter)
ADCPH - 9700 CP7/S NOZZLE Ø1.3 (8mm Diameter) MELF
ADCPH - 9550 CP7/S NOZZLE Ø1.8 (16mm Diameter)
ADCPH - 9560 CP7/L NOZZLE Ø2.5 (16mm Diameter)
ADCPH - 9710 CP7/L NOZZLE Ø2.5 (16mm Diameter) MELF
ADCPH - 9570 CP7/L NOZZLE Ø3.7 (16mm Diameter)
ADCPH - 9580 CP7/L NOZZLE Ø5.0 (16mm Diameter) SQUARE

IP1-IP2 NOZZLE
Part Number(OEM) Description
IPH - 3431 IP - SS NOZZLE Ø 1.0
IPH - 3421 IP - S NOZZLE Ø 1.3
IPH - 3411 IP - M NOZZLE Ø 2.5
IPH - 3401 IP - L NOZZLE Ø 4.0
IPH - 4511 IP - LL NOZZLE Ø 7.0 (WITH CAP)
IPH - 4520 IP - LL NOZZLE Ø 10.0 (WITH CAP)
IPH - 4531 IP - LL NOZZLE Ø 15.0 (WITH CAP)
IPH - 4541 IP - LL NOZZLE Ø 20.0 (WITH CAP)
AKPH - 2051 IP2 - SS NOZZLE Ø 1.0 (FIXED)
AKPH - 2031 IP2 - S NOZZLE Ø 1.3 (FIXED)
AKPH - 2041 IP2 - M NOZZLE Ø 2.5 (FIXED)
AKPH - 2061 IP2 - L NOZZLE Ø 4.0 (FIXED)
AIPH - 4030 IP2 -1.3 /21mm DISK
AIPH - 4090 IP2 - 2.5 /33mm DISK
AIPH - 4100 IP2 - 4.0 /71mm DISK
AIPH - 4120 IP 2-10.0 /91mm DISK

IP3 Nozzle
Part Number(OEM) Description
AQNA - 3110/19 IP3 - NOZZLE Ø 0.7 (FIXED) (10mm)
AQNA - 3120/29 IP3 - NOZZLE Ø 1.0 (FIXED) (10mm)
AQNA - 3130/39 IP3 - NOZZLE Ø 1.3 (FIXED) (31 x 31mm)
AQNA - 3140/49 IP3 - NOZZLE Ø 1.8 (FIXED) (31 x 31mm)
AQNA - 3150/59 IP3 - NOZZLE Ø 2.5 (FIXED) (31 x 31mm)
AQNA - 3160/69 IP3 - NOZZLE Ø 3.7 (FIXED) (31 x 31mm)
AQNA - 3170 IP3 - NOZZLE Ø 7.0 (FIXED) (31 x 31mm)
AQNA - 3180 IP3 - NOZZLE Ø 10.0 (FIXED) (52 x 52mm)
AQNA - 3190 IP3 - NOZZLE Ø 15.0 (FIXED) (62 x 62mm)
AQNA - 3200/01 IP3 - NOZZLE Ø 20.0 (FIXED) (102 x 102mm)
AQNA - 3290/95 IP3 - NOZZLE Ø 3.7 (FIXED) (52 x 52mm)
AQNA - 3300/04 IP3 - NOZZLE Ø 7.0 (FIXED) (52 x 52mm)
AQNA - 3310/14 IP3 - NOZZLE Ø 10.0 (FIXED) (62 x 62mm)
AQNA - 3320/24 IP3 - NOZZLE Ø 15.0 (FIXED) (102 x 102mm)
AQNA - 3330/34 IP3 - NOZZLE Ø 6.5 (FIXED) (52 x 52mm)

QP242 INDEX Nozzle
Part Number(OEM) Description
ABHPN-8510 QP-2 INDEX NOZZLE 0.7Φ/12
ABHPN-8520 QP-2 INDEX NOZZLE 1.0Φ/12
ABHPN-8530 QP-2 INDEX NOZZLE 1.3/12
ABHPN-8670 QP-2 INDEX NOZZLE 1.3/38
ABHPN-8540 QP-2 INDEX NOZZLE 1.8Φ/12
ABHPN-8550 QP-2 INDEX NOZZLE 2.5Φ/38
ABHPN-8560 QP-2 INDEX NOZZLE 2.5ΦG/38
ABHPN-8570 QP-2 INDEX NOZZLE 3.75Φ/38
ABHPN-8580 QP-2 INDEX NOZZLE 6.5ΦG/47
ABHPN-8590 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8600 QP-2 INDEX NOZZLE 10.0Φ/47F
ABHPN-8610 QP-2 INDEX NOZZLE 2.5Φ/38F
ABHPN-8620 QP-2 INDEX NOZZLE 2.5ΦG/38F
ABHPN-8630 QP-2 INDEX NOZZLE 3.75Φ/38F
ABHPN-8640 QP-2 INDEX NOZZLE 6.5ΦG/47F
ABHPN-8650 QP-2 INDEX NOZZLE 7.0Φ/47F
ABHPN-8660 QP-2 INDEX NOZZLE 10.0Φ/47F

QP242 SINGLE Nozzle
Part Number(OEM) Description
ABHPN-6217 QP-2 NOZZLE SINGLE 1.0Φ L=270F
ABHPN-6227 QP-2 NOZZLE SINGLE 1.3Φ L=270F
ABHPN-6237 QP-2 NOZZLE SINGLE 1.8Φ L=270F
ABHPN-6248 QP-2 NOZZLE SINGLE 2.5Φ L=270F
ABHPN-6718 QP-2 NOZZLE SINGLE 2.5GΦ L=270F
ABHPN-6258 QP-2 NOZZLE SINGLE 3.75Φ L=270F
ABHPN-6855 QP-2 NOZZLE SINGLE 5ΦG L=270F
ABHPN-8196 QP-2 NOZZLE SINGLE 5ΦG L=270(back)
ABHPN-6273 QP-2 NOZZLE SINGLE 7Φ L=270F
ABHPN-6895 QP-2 NOZZLE SINGLE 8ΦG L=270F
ABHPN-8216 QP-2 NOZZLE SINGLE 8ΦG L=270(back)
ABHPN-6283 QP-2 NOZZLE SINGLE 10ΦL=270F
ABHPN-6293 QP-2 NOZZLE SINGLE 15Φ L=270F
ABHPN-6805 QP-2 NOZZLE SINGLE 15ΦG L=270F
ABHPN-6705 QP-2 NOZZLE SINGLE 17.5GΦ L=270F
ABHPN-6300 QP-2 NOZZLE SINGLE 20Φ L=270F
ABHPN-6330 QP-2 NOZZLE SINGLE 0.7 Φ L=185F
ABHPN-6750 QP-2 NOZZLE SINGLE 6.5ΦG L=185F
ABHPN-6360 QP-2 NOZZLE SINGLE 7Φ L=185F
ABHPN-6810 QP-2 NOZZLE SINGLE 7Φ L=100F
ABHPN-6770 QP-2 NOZZLE SINGLE 10Φ L=185F
ABHPN-6340 QP-2 NOZZLE SINGLE 10ΦG L=185F
ABHPN-6821 QP-2 NOZZLE SINGLE 10Φ L=100F
ABHPN-6780 QP-2 NOZZLE SINGLE 15Φ L=185F
ABHPN-6831 QP-2 NOZZLE SINGLE 15Φ L=100F
ABHPN-6790 QP-2 NOZZLE SINGLE 20Φ L185F
ABHPN-6840 QP-2 NOZZLE SINGLE 20Φ L100F
ABHPN-6850 QP-2 NOZZLE SINGLE 23ΦG (for BGA)

XP142/XP143/XPF Nozzle
ADNPN8303/AGFPN8401 0.4mm
ADNPN8313/ADNPN8370/AGGPN8412 0.7mm
ADNPN8233/ADNPN8238/AGGPN8422 1.0mm
ADNPN8243/ADNPN8248/AGGPN8432 1.3mm
ADNPN8240/ADNPN8346/AGGPN8482 1.3melf
ADNPN8253/ADNPN8258/AGGPN8442 1.8mm
ADNPN8263/ADNPN8268/AGGPN8452 2.5mm
ADNPN8250/ADNPN8356/AGGPN8492 1.8melf
ADNPN8260/ADNPN8366/AGGPN8502 2.5melf
ADNPN8273/ADNPN8278/AGGPN8462 3.7mm
ADNPN8283/ADNPN8288/AGGPN8472 5.0mm
AGFPN8052 1.0mm
AGFPN8062 1.3mm

XP141E nozzle
Part Number(OEM) Description
ADEPN-8070 XP-141 NOZZLE ASS'Y-0.7Φ
ADEPN-8080 XP-141 NOZZLE ASS'Y-1.0Φ
ADEPN-8090 XP-141 NOZZLE ASS'Y-1.3Φ
ADEPN-8100 XP-141 NOZZLE ASS'Y-1.8Φ

XP142E / XP143E Nozzle
Part Number(OEM) Description
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8210 XP-142 NOZZLE ASS'Y-0.7Φ
ADNPN8230 XP-142 NOZZLE ASS'Y-1.0Φ
ADNPN8240 XP-142 NOZZLE ASS'Y-1.3Φ
ADNPN8250 XP-142 NOZZLE ASS'Y-1.8Φ
ADNPN8260 XP-142 NOZZLE ASS'Y-2.5Φ
ADNPN8270 XP-142 NOZZLE ASS'Y-3.7Φ
ADNPN8280 XP-142 NOZZLE ASS'Y-5.0Φ

Machine Fuji CP6
P/N: AWPH-9702
P/N: AWPH9510 Des: Nozzle,0.7 (12mm disc)
P/N: AWPH9520 Des: Nozzle,1.0 (12mm disc)
P/N: AWPH9530 Des: Nozzle,1.3 (12mm disc)
P/N: AWPH9540 Des: Nozzle,1.3 (12mm disc) Melf
P/N: AWPH9550 Des: Nozzle,1.8 (12mm disc)
P/N: AWPH9560 Des: Nozzle,2.5 (16mm disc)
P/N: AWPH9570 Des: Nozzle,3.7 (16mm disc)
P/N: AWPH9580 Des: Nozzle,2.5 (20mm disc)
P/N: AWPH9590 Des: Nozzle,2.5 (20mm disc) Melf
P/N: AWPH9600 Des: Nozzle,3.75 (20mm disc)

Machine Fuji CP7/CP8
Des: Nozzle,0.4 (8mm disc)
P/N: Des: Nozzle,0.4 (8mm disc) taper tip
P/N: ADCPH9520 Des: Nozzle,0.7 (8mm disc)
P/N: ADCPH9530 Des: Nozzle,1.0 (8mm disc)
P/N: ADCPH9540 Des: Nozzle,1.3 (8mm disc)
P/N: ADCPH9700 Des: Nozzle,1.3 (8mm disc) Melf
P/N: ADCPH9550 Des: Nozzle,1.8 (16mm disc)
P/N: ADCPH9560 Des: Nozzle,2.5 (16mm disc)
P/N: ADCPH9800 Des: Nozzle,2.5 (16mm disc) Melf
P/N: ADCPH9570 Des: Nozzle,3.75 (16mm disc)

Machine Fuji QP242
P/N: ABHPN-8510 Des: Nozzle,QP-2 INDEX NOZZLE 0.7/12
P/N: ABHPN-8520 Des: Nozzle,QP-2 INDEX NOZZLE 1.0/12
P/N: ABHPN-8530 Des: Nozzle,QP-2 INDEX NOZZLE 1.3/12
P/N: ABHPN-8670 Des: Nozzle,QP-2 INDEX NOZZLE 1.3/38
P/N: ABHPN-8540 Des: Nozzle,QP-2 INDEX NOZZLE 1.8/12
P/N: ABHPN-8550 Des: Nozzle,QP-2 INDEX NOZZLE 2.5/38
P/N: ABHPN-8560 Des: Nozzle,QP-2 INDEX NOZZLE 2.5G/38
P/N: ABHPN-8570 Des: Nozzle,QP-2 INDEX NOZZLE 3.75/38
P/N: ABHPN-8580 Des: Nozzle,QP-2 INDEX NOZZLE 6.5G/47
P/N: ABHPN-8590 Des: Nozzle,QP-2 INDEX NOZZLE 7.0/47
P/N: ABHPN-8600 Des: Nozzle,QP-2 INDEX NOZZLE 10.0/47
P/N: ABHPN-8610 Des: Nozzle,QP-2 INDEX NOZZLE 2.5/38F
P/N: ABHPN-8620 Des: Nozzle,QP-2 INDEX NOZZLE 2.5G/38F
P/N: ABHPN-8630 Des: Nozzle,QP-2 INDEX NOZZLE 3.75/38F
P/N: ABHPN-8640 Des: Nozzle,QP-2 INDEX NOZZLE 6.5G/47F
P/N: ABHPN-8650 Des: Nozzle,QP-2 INDEX NOZZLE 7.0/47F
P/N: ABHPN-8660 Des: Nozzle,QP-2 INDEX NOZZLE 10.0/47F
P/N: ABHPN-6217 Des: Nozzle,QP-2 NOZZLE SINGLE 1.0 L=270F
P/N: ABHPN-6227 Des: Nozzle,QP-2 NOZZLE SINGLE 1.3 L=270F
P/N: ABHPN-6237 Des: Nozzle,QP-2 NOZZLE SINGLE 1.8 L=270F
P/N: ABHPN-6248 Des: Nozzle,QP-2 NOZZLE SINGLE 2.5 L=270F
P/N: ABHPN-6718 Des: Nozzle,QP-2 NOZZLE SINGLE 2.5G L=270F
P/N: ABHPN-6258 Des: Nozzle,QP-2 NOZZLE SINGLE 3.75 L=270F
P/N: ABHPN-6855 Des: Nozzle,QP-2 NOZZLE SINGLE 5G L=270F
P/N: ABHPN-8196 Des: Nozzle,QP-2 NOZZLE SINGLE 5G L=270(back)
P/N: ABHPN-6273 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=270F
P/N: ABHPN-6895 Des: Nozzle,QP-2 NOZZLE SINGLE 8G L=270F
P/N: ABHPN-8216 Des: Nozzle,QP-2 NOZZLE SINGLE 8G L=270(back)
P/N: ABHPN-6283 Des: Nozzle,QP-2 NOZZLE SINGLE 10L=270F
P/N: ABHPN-6293 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=270F
P/N: ABHPN-6805 Des: Nozzle,QP-2 NOZZLE SINGLE 15G L=270F
P/N: ABHPN-6705 Des: Nozzle,QP-2 NOZZLE SINGLE 17.5G L=270F
P/N: ABHPN-6300 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L=270F
P/N: ABHPN-6330 Des: Nozzle,QP-2 NOZZLE SINGLE 0.7 L=185F
P/N: ABHPN-6750 Des: Nozzle,QP-2 NOZZLE SINGLE 6.5G L=185F
P/N: ABHPN-6360 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=185F
P/N: ABHPN-6810 Des: Nozzle,QP-2 NOZZLE SINGLE 7 L=100F
P/N: ABHPN-6770 Des: Nozzle,QP-2 NOZZLE SINGLE 10 L=185F
P/N: ABHPN-6340 Des: Nozzle,QP-2 NOZZLE SINGLE 10G L=185F
P/N: ABHPN-6821 Des: Nozzle,QP-2 NOZZLE SINGLE 10 L=100F
P/N: ABHPN-6780 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=185F
P/N: ABHPN-6831 Des: Nozzle,QP-2 NOZZLE SINGLE 15 L=100F
P/N: ABHPN-6790 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L185F
P/N: ABHPN-6840 Des: Nozzle,QP-2 NOZZLE SINGLE 20 L100F

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.

Keywords:

Samsung Nozzle, Yamaha Chip mounter Nozzle, SMT Nozzle, Juki Nozzle, Panasonic Nozzle, Pick and place machine Nozzle, Seimens Nozzle, Yamaha Nozzle, FUJI Nozzle, JUKI Nozzle,Hitachi Nozzle.
