  • ERSA VERSAFLOW 3/45 Selective Soldering Machine

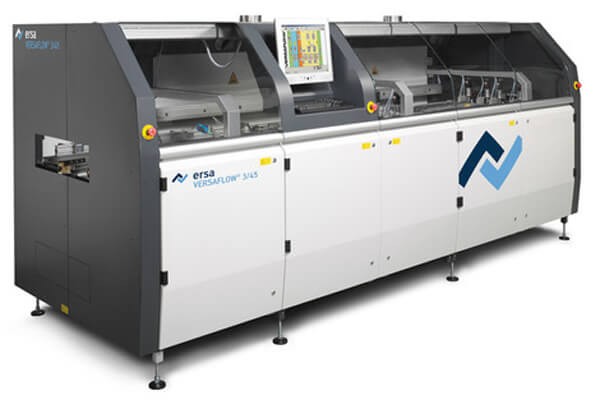

ERSA VERSAFLOW 3/45 Selective Soldering Machine

ERSA VERSAFLOW 3/45 Selective Soldering Machine

  • PCB size up to 406 x 508 mm
  • Multi-wave soldering area up to 356 x 356
  • Mini-wave 13 kg up to 6 pots
  • PCB weight: 5 kg
  • Product description: ERSA VERSAFLOW 3/45 Selective Soldering Machine, PCB size up to 406 x 508 mm, Multi-wave soldering area up to 356 x 356, Mini-wave 13 kg up to 6 pots, PCB weight: 5 kg
  • INQUIRY

ERSA VERSAFLOW 3/45 Selective Soldering Machine

Specifications:


High end selective soldering system to integrate into in-line manufacturing concepts
Mini-wave soldering for high flexibility or multi-wave soldering for high volume applications
Product change without loss in production time with the multi-wave process
Parallel process through separation of fluxing, preheating and soldering cycle
Use of up to 4 flux spray heads
Flexible system configuration on account of modularity of the design
Optional board examination systems
Ideal for linking to manual workstations or peripheral equipment
Secure process control with monitoring of all relevant processes
CAD-Assistant for offline programming
Link for traceability systems for process control
VERSAFLOW 3/45
In order to satisfy all demands in regards to flexibility, the third generation of Ersa´s VERSAFLOW selective soldering systems is based on a modular platform. Depending on the application and on the throughput requirements called for, additional flux, preheat and solder modules can be integrated into the system. In the maximum configuration level of the VERSAFLOW, the system can therefore operate with up to three solder modules, and each of these modules can again be configured with two mini-wave solder baths. In total, up to 6 mini-wave solder bath can be installed in a system, and each solder module can be preceded by a preheat unit.

Doubling the throughput rate, maximum expansionMulti-wave solder bath is available as an alternative to the single-wave bath. For configurations with the single-wave bath, additional top side preheaters are available for both the preheat zones as well as over the solder baths. With the dual-track option, the throughput rate can be doubled without increasing the footprint of the unit. If the size of the board assembly permits, the preheaters can be segmented, and this feature will further increase throughput. The VERSAFLOW offers its user a maximum of opportunities to configure his system. On account of the high throughput, the amortization period is rather short. With the Ersa VERSAFLOW, the highest throughput rate of any system currently on the market is achieved.

Dimensions
Length from 2,450 to 7,500 mm
Width approx. 1,750 mm
Height approx. 1,650 mm
Conveyor support
Segmented pin and chain / roller conveyor
PCB width: 63.5-508 mm (option 600 mm)
PCB length: 127-508 mm (option 600 mm)
Maximum PCB top side clearance: 120 mm
Maximumg PCB bottom side clearance: 60 mm (30 mm upto z – variable)
Maximum PCB weight: 5 kg (option 15 kg)Media supply
Nitrogen
Pneumatic system
Electric supply
Extracted air
Flux module
Drop-Jet in different sizes
Preheat module
Dynamic IR heating, convection or combination of IR and convection
Solder module
Electromagnetic solder pot
Mini-wave 13 kg up to 6 pots
Multi-wave soldering area up to 356 x 356 / 360 x 460 / 370 x 425 mm
PCB size up to 406 x 508 mm
